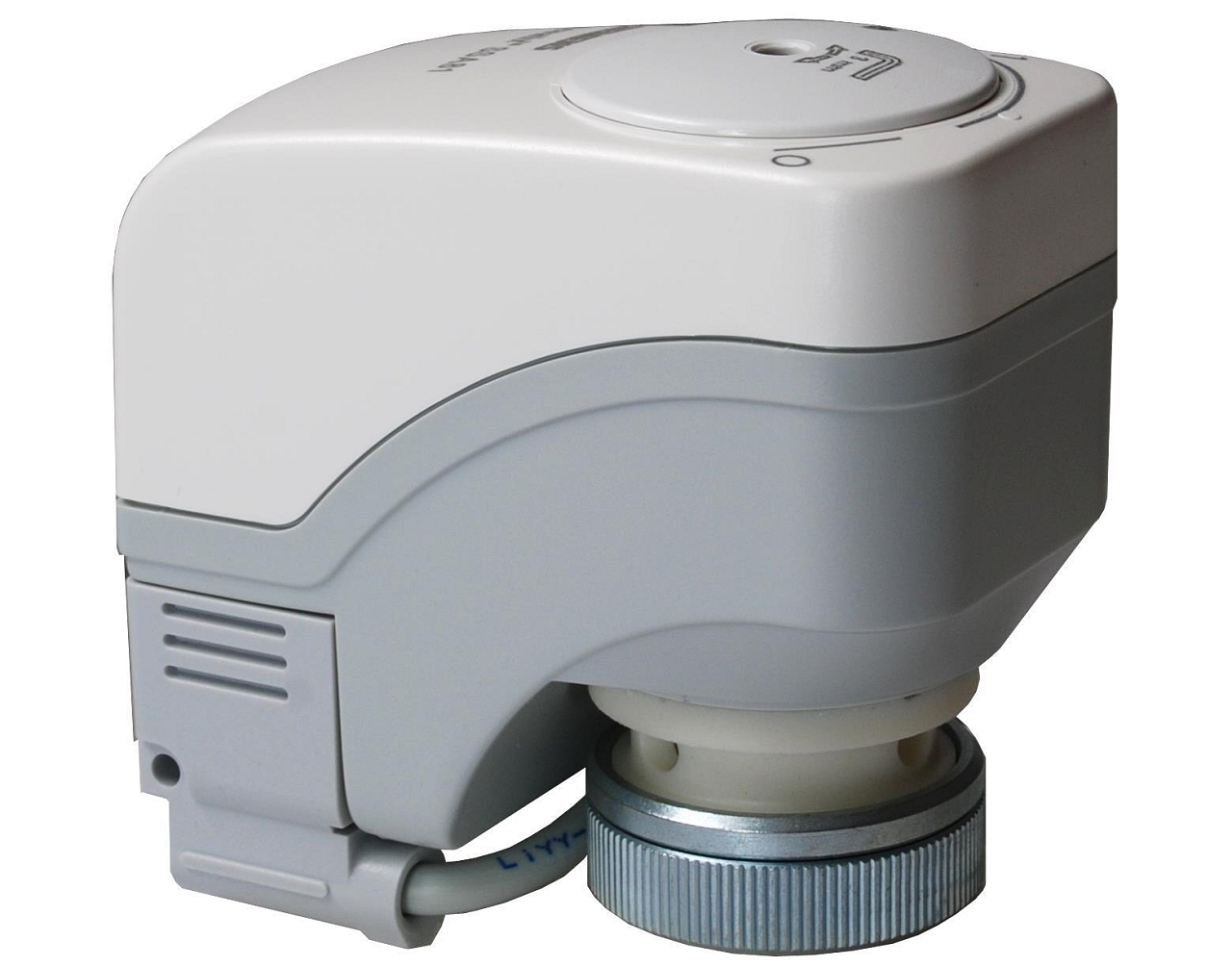

The SSA 61 electromechanical actuator is suitable for radiator valves, MiniCombi Valves (MCV), and small VD1..CLC valves.

Advantages:

• Plastic housing
• Maintenance-free mechanism, resistant to blockage
• Manual adjustment with a 3 mm hex key
• Reduced power consumption in idle positions
• Disengagement by torque clutch during overload and at stroke end positions
• Possibility of parallel operation of 6 SSA31..., 24 SSA81..., and 10 SSA61... provided the controllers have sufficient power
• Available terminal block for cables from other manufacturers (only for actuators with AC 24 V and AC/DC 24 V power supply)
• Connection cables with connectors for AC 24 V and AC 230 V cannot be interchanged
• Halogen-free cables are available

Features:

• Voltage 24 AC/DC
• Control signal 0...10 V
• Connection cable 1.5 m
• Connection thread to valve: union nut M30 x 1.5
