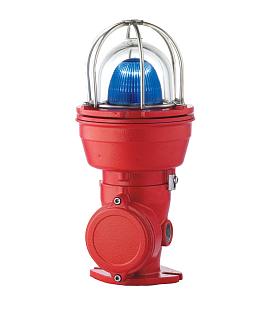

Signal lamp SIRENA EX 050 OVO SMD ATEX EX-D (SIR-97191)

Signal lamp SIRENA EX 050 OVO SMD ATEX EX-D (SIR-97191)

SIRENA
  • Product code: SIR-97191
  • Manufacturer code: SIR-97191
  • Warranty: 2 years

The Sirena EX 050 OVO M SMD explosion-proof LED light is a compact signalling device designed for use in explosive… More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 621,21
Price with VAT 21 % € 751,66
+

Parameters and catalogs

Light Colour Blue
Light mode Flashing light, Constant light
Atex Zone 1.21
IP Rating IP66
Power Supply 24 VDC, 24 VAC, 12 VDC, 12 VAC
Weight 2.58 kg

Catalog sheet EN download

Download PDF

The Sirena EX 050 OVO M SMD explosion-proof LED light is a compact signalling device designed for use in explosive environments (zones 1, 2, 21, and 22). It offers four light modes – continuous lighting, single, double, and triple flash – selectable via an internal DIP switch.

The light features a robust copper-free aluminium alloy body, an external borosilicate glass cover, and an internal polycarbonate dome. It is intended for continuous operation, comes in a red finish (RAL 3020), and has a high IP66 rating, ensuring resistance to dust and water.

Main Features

  • 4 light modes: continuous, single, double, and triple flash
  • For explosive hazard zones 1, 2, 21, and 22
  • Compact design for easy installation
  • Copper-free aluminium alloy body
  • High IP66 rating – water and dust resistance
  • Red coating RAL 3020

Technical Specifications

Power Supply 12/24 V ACDC
Power Consumption 5 W max
Temperature Range -25...+50 °C
Protection Rating IP66
Material Aluminium alloy, glass, polycarbonate
Thread M25×1.5
Temperature Class T6
