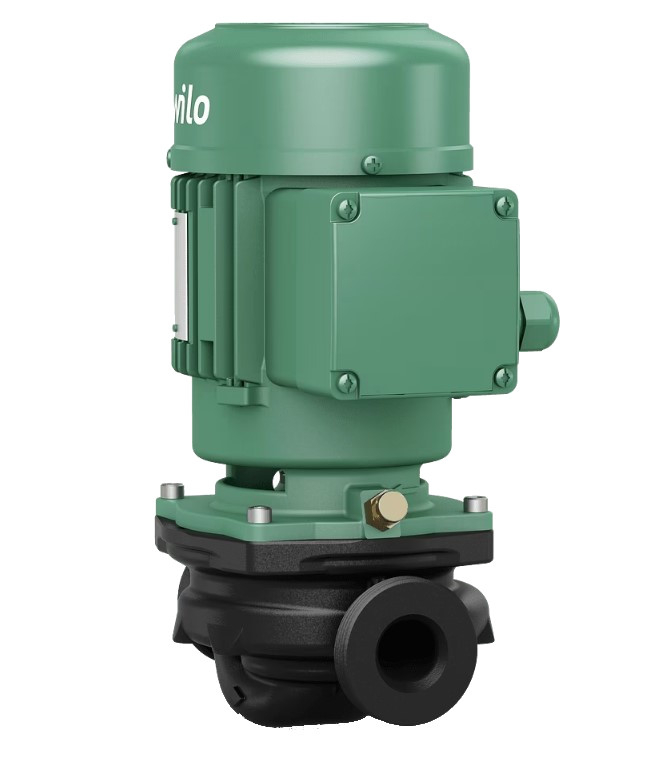

Single-stage dry-running centrifugal pump in a compact Inline design with a directly flanged three-phase motor and undivided shaft or with a lantern and coupling firmly connected motor according to the standard (version N). The IPL series is suitable for installation in a pipeline or mounting on a base. Brackets can be supplied as accessories.

With a forced-flushed, rotation-independent mechanical seal with a bellows and a cavitation-reducing plastic impeller. Flange with a connection for pressure measurement R 1/8. The pump casing and lantern have a cathodic protection layer.

Technical Data

• Maximum operating pressure: 10 bar
• Medium temperature range: -20 °C to 120 °C
• Maximum ambient temperature: 40 °C
• Nominal motor power: 0.25 kW
• Nominal current: 0.66 A

Materials

• Pump casing: grey cast iron
• Impeller: PP-LGF50
• Shaft: stainless steel
• Mechanical seal: AQ1EGG

Motor

• Energy class: IE2
• Power supply: 3~400 V, 50 Hz
• Nominal speed: 2850 1/min
• Protection class: IP55
• Insulation class: F

Dimensions

• Pipe connection on suction side: G 1½
• Pipe connection on discharge side: G 1½
• Construction length: 180 mm
