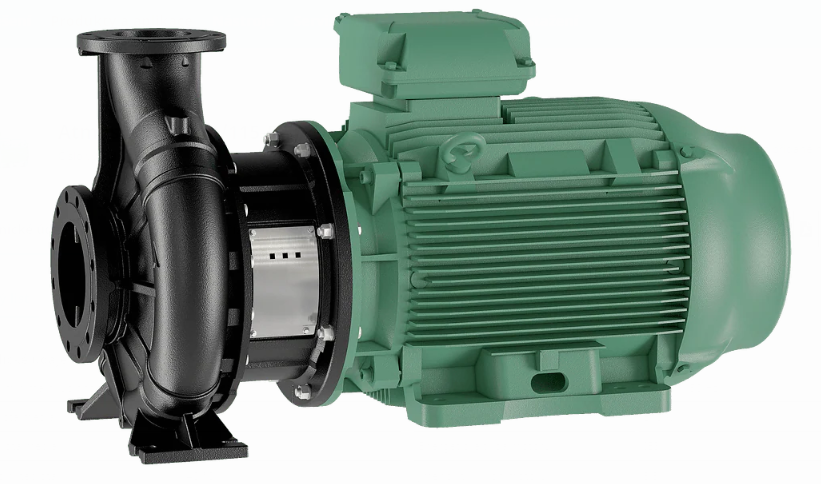

The Atmos GIGA-B 50/115-55/2 pump from Wilo is a highly efficient single-stage dry-running centrifugal pump designed for installation on a base plate, distinguished by its block construction and quiet, vibration-free operation. With a lantern and a firmly connected standard motor, the pump provides a forced-flushed mechanical seal independent of the direction of rotation with the option of a Cartridge design for easy seal replacement without the need to dismantle the motor. The pump's impeller is designed to minimize cavitation, and all cast iron components are protected by a cataphoretic coating.

Main Features:

• Maximum operating pressure of 16 bar.
• Capability to pump media at temperatures up to 140 °C.
• The IE3 motor energy class ensures high efficiency and economical operation.
• Pipe connection on the suction side DN 65 and on the discharge side DN 50, allowing optimal adaptation to various installation conditions.
• Nominal motor power of 5.5 kW with a nominal speed of 2900 rpm, ensuring high pumping performance.
• Pump casing and lantern made of grey cast iron with KTL coating for high corrosion resistance.

The Atmos GIGA-B 50/115-55/2 is an ideal solution for applications requiring high efficiency, reliability, and long-term durability in demanding operating conditions. Thanks to its robust construction and advanced technology, the pump offers long service life and minimal maintenance requirements, making it an efficient choice for a wide range of industrial and technical applications.
