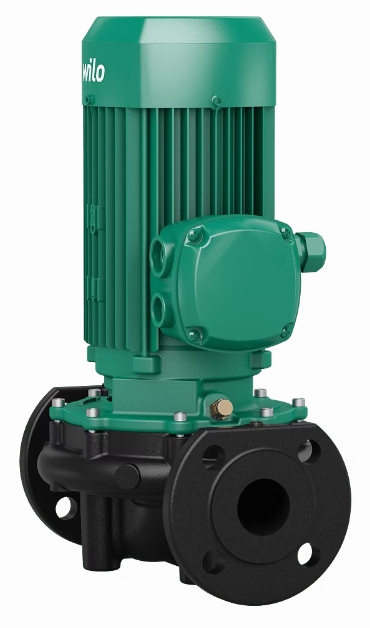

VeroLine-IPL 65/175-7.5/2 is a single-stage dry-running centrifugal pump in a compact inline design with a directly attached three-phase IE3 motor. This pump is suitable for installation in pipelines or mounting on a base and is ideal for applications where water pumping is required at temperatures from -20 °C to 120 °C. Thanks to its compact and robust construction and corrosion-resistant hydraulic components, it offers high efficiency and long-term reliability.

Main Features:

• Maximum operating pressure: 10 bar, allowing for trouble-free operation in demanding conditions.
• Connection: DN 65 for both suction and discharge
• Pumping capacity: Up to 89.5 m³/h with an optimal pumping volume of 73.7 m³/h.
• Temperature range: Ability to pump media with a temperature from -20 °C to 120 °C.
• Materials: Pump casing and impeller made of PP-LGF50 and shaft made of stainless steel, ensuring excellent durability.
• Motor: With energy class IE3 and a nominal power of 7.5 kW for efficient operation.

The pump is equipped with a forced-flushed, rotation-independent mechanical seal with a bellows and a cavitation-reducing plastic impeller. A flange with a pressure measurement connection R 1/8 and a pump body with a cataphoretic protective layer provide additional reliability.

VeroLine-IPL 65/175-7.5/2 is the optimal solution for water supply and pressure boosting in industrial applications.
