SmartAct Damper Actuator, Honeywell N3424, 34Nm, 24VAC

SmartAct Damper Actuator, Honeywell N3424, 34Nm, 24VAC
  • Sale
  • 2 variants

SmartAct Damper Actuator, Honeywell N3424, 34Nm, 24VAC

HONEYWELL
  • Product code: N3424
  • EAN : 085267047043
  • Manufacturer code: N3424
  • Warranty: 2 years

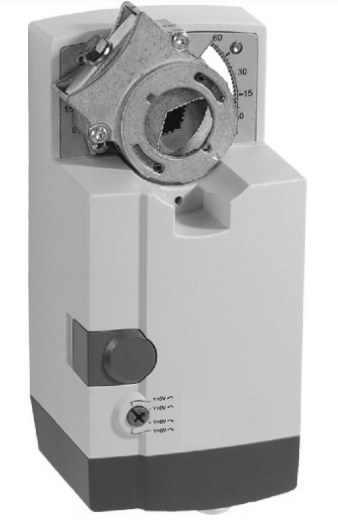

Honeywell Smart Act N3424 damper actuator without return spring for continuous control or 3/2-point regulation. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • SALE: Only 1 pcs left in stock

Price excluding VAT € 118,51
Price with VAT 21 % € 143,40
− +

Trustpilot

Parameters and catalogs

Control -40...180 °C
Damper size 3 m²
Emergency function 0...25 mbar
IP Rating IP 54
Power Supply 24 VAC
Setup time 110 s
Torque 34 Nm
Weight 1.80 kg

Catalog sheet download

Download PDF

Honeywell Smart Act N3424 damper actuator without return spring for continuous control or 3/2-point regulation.

The damper actuator allows regulation for:

  • VAV units
  • Air handling dampers
  • Ventilation dampers, louvers

Features:

  • Manual adjustment (thanks to the clutch)
  • Setting of end positions - mechanically
  • Removable cover for direct connection
  • Installation possible in any position
  • Switch between continuous or 3/2-point regulation

Device Description:

  • 1.) Self-centering shaft adapter
  • 2.) Clamp
  • 3.) Rotation angle scale (0 ... 90 ° / 90 ... 0 °)
  • 4.) Mechanical end limits (only 20 Nm models)
  • 5.) Clutch button
  • 6.) Anti-rotation bracket
  • 7.) Rotation direction switch
  • 8.) Access cover



Rotation Direction Switch:

Rotation Direction Control signal when actuator is:
Fully ← Fully  →
Y=2← /2...10V U = 2 V U = 10 V
Y=0← /0...10V* U = 0 V U = 10 V
Y=0→ /10...0V U = 10 V U = 0 V
Y=2 → /10...2V U = 10 V U = 2 V
*Default setting
