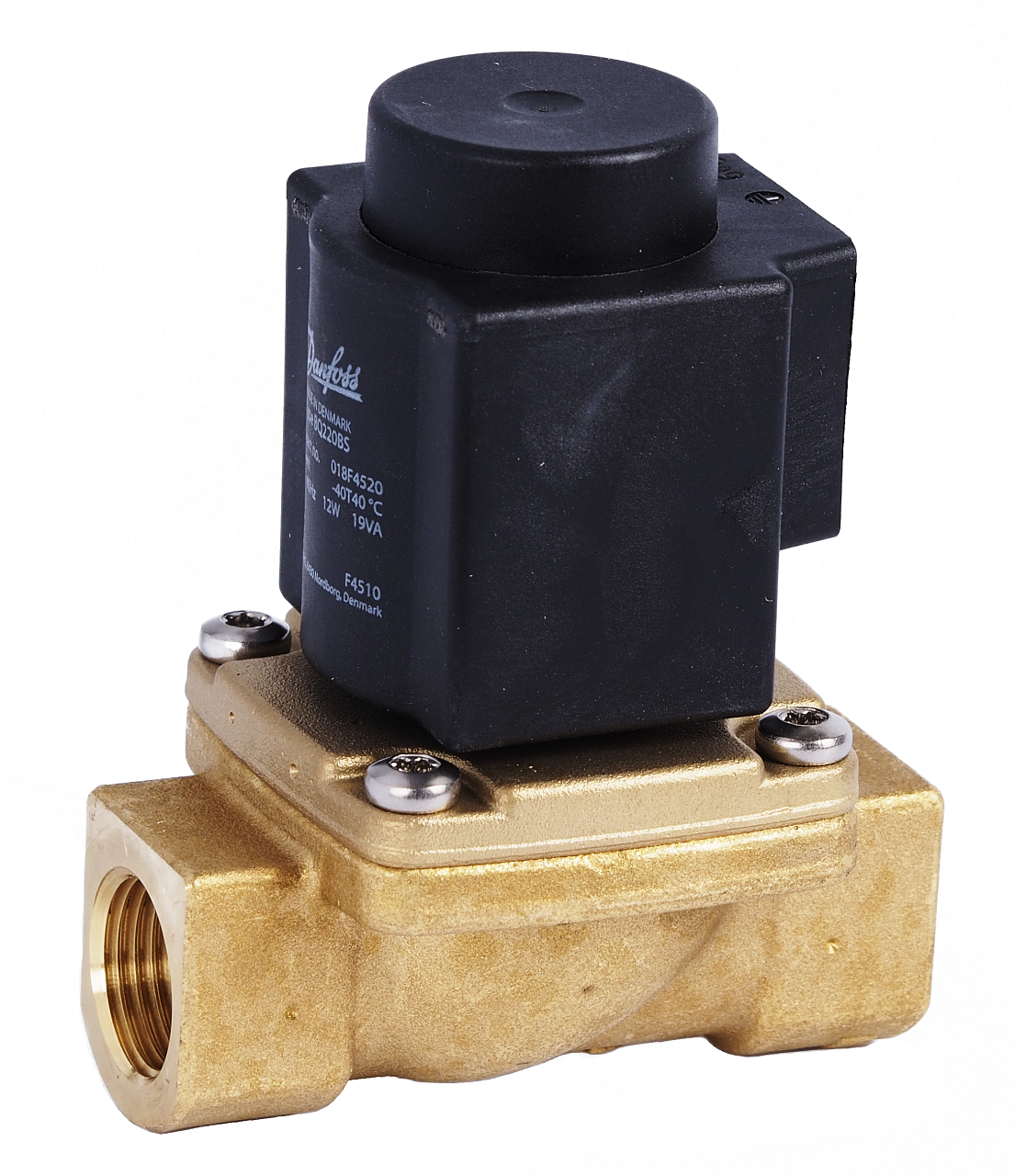

Servo-operated 2/2-way solenoid valve suitable for steam, normally closed when de-energized. High reliability and quality from the Danfoss brand. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Connection | 1/2" |
| Connection size | DN 15 |
| Connection Type | Internal thread |
| Function | Closed without voltage |
| IP Rating | IP 65 |
| Medium | 0...90 °C |
| Power Supply | 24 VDC |
| Pressure | 10 bar |
| Temperature | 185 °C |
| Weight | 1.20 kg |
Catalog sheet download
Download PDF
Data sheet download
Download PDF
Instructions for assembly and use download

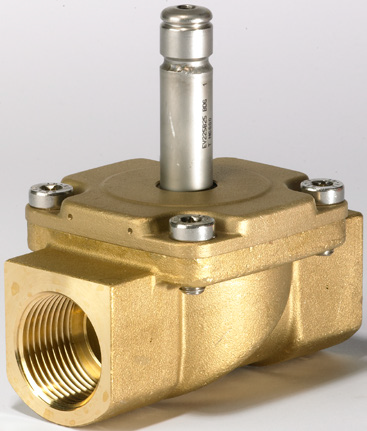

Download PDFEV 225B 10 – EV 225B 25 is a 2/2-way solenoid valve, operated by a coil. The valve body is made of special DZR brass and the valve seat is made of stainless steel, ensuring long life even for aggressive steam.
The design is based on a PTFE diaphragm providing highly reliable operation.
Danfoss valves offer a balanced ratio between high quality and affordable price. They are maintenance-free and will serve you for many years.
