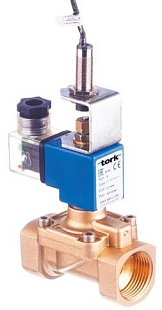

Solenoid valve with auxiliary contact TORK T-KCV More information
Out of stock - can be requested
| Atex | No |
| Connection size | 3/8" |
| Connection Type | Internal thread |
| Flow | 48 l/min |
| Function | Closed without voltage |
| Gasket | NBR |
| IP Rating | IP 65 |
| Medium | G 1/4", DN 13, 0...1.6 bar |
| Medium Temperature | 80 °C |
| Nominal diameter | DN 10 |
| Power Supply | 24 VAC |
| Pressure | 6 bar |
| Weight | 0.89 kg |
Catalog sheet eng download
Download PDFElectromagnetic solenoid valve TORK with auxiliary contact. The valve is used for water, air, and gas. The valve body is made of brass and the internal parts are made of stainless steel.
The TORK electromagnetic valve meets the certification for drinking water NSF/ANSI61: Component for drinking water.
WARNING - Due to operation and ambient temperatures, the coil surface may heat up. This is a normal characteristic of coils!
