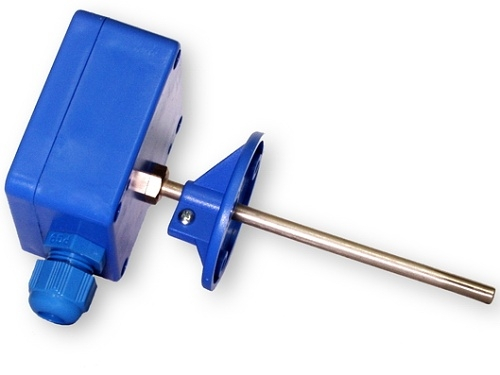

Regmet temperature sensor with current output. It is designed for remote temperature measurement of liquids, steam, air, and other media in control and regulation systems. The sensor head is made of plastic, while other metal parts are made of stainless steel DIN 1.4301. The resistive sensor is encapsulated in a stem tube. Its leads consist of wires that are connected at the other end to a temperature-current converter located in the sensor head. It is suitable for operation in standard, chemically non-aggressive environments. Regmet temperature sensors require no maintenance.

Technical Specifications

• design for HVAC duct (length 240mm)
• power supply voltage Ucc 11-35 VDC
• output signal 4-20mA
• measurement error < 0.6%
• ambient temperature -30...80 °C
• relative humidity < 80%
• protection rating IP 65

Select the desired temperature range when ordering!
