Stem temperature sensor with a plastic head and 0–10 V output for measuring in pipes, liquids, and HVAC applications. More information
Out of stock - can be requested
| Measurement range | -30...150 °C |
| Output | 0-10 V |
| Sensor type | Pt 1000/3850 |
| Stem length | 120 mm |
| Weight | 0.13 kg |
Catalog sheet download

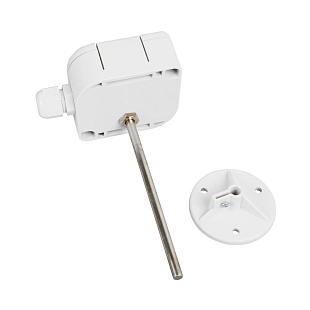

Download PDFThe NS 720-120 resistance temperature sensor is used for precise measurement of the temperature of liquids, gases, and air. A robust stainless steel stem with a length of 120 mm allows installation into pipes, air ducts, or technological equipment.
The plastic head with IP65 protection houses a transmitter with a 0–10 V output, ensuring easy connection with control and regulation systems. The sensor is designed for universal use in industrial and air conditioning applications.
| Stem Length | 120 mm |
| Measurement Range | –30...150 °C |
| Sensor Type | Pt1000 / output 0–10 V |
| Power Supply | 15...30 VDC (recommended 24 VDC) |
| Accuracy | < 0.6% of range, min. 0.5 °C |
| Protection | IP65 |
| Material | Stainless steel 17240 (stem), polyamide (head) |
