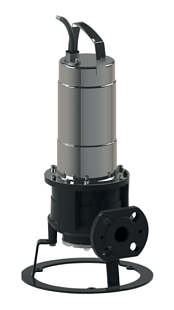

Submersible Pump for Sewage Wilo Rexa CUT GI03.26/S-T15-2-540 (6069868)

Submersible Pump for Sewage Wilo Rexa CUT GI03.26/S-T15-2-540 (6069868)

WILO
  • Product code: 6069868
  • EAN : 4048482385334
  • Manufacturer code: 6069868
  • Warranty: 2 years

Submersible motor pump with internal grinding device for both fixed and mobile installation in wet environments. The… More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Cable length 10 m
Connection size DN 32
IP Rating IP 68
Medium RP 3/8"
Power Supply 400 VAC
Weight 34.70 kg

Technical sheet download

Download PDF
Submersible motor pump with internal grinding device for both fixed and mobile installation in wet environments. The pump can operate in both intermittent and continuous modes. The motor is adapted for three-phase current and is surface-cooled by the surrounding environment. Between the motor and the hydraulics, there is a sealing chamber filled with medical white oil, preventing the ingress of media into the motor. It can be used for wastewater with faeces according to the EN 12050-1 standard (including long fibres), as well as for pre-treated wastewater without faeces or sewage water. Technical data - Power supply: 400 VAC - IP rating: IP68 - Connection size: DN 32 - Cable length: 10 m - Head (H max): 26.5 m - Flow rate (Q max) m3: 19.5 m3/h - Nominal current: 3.6 A
