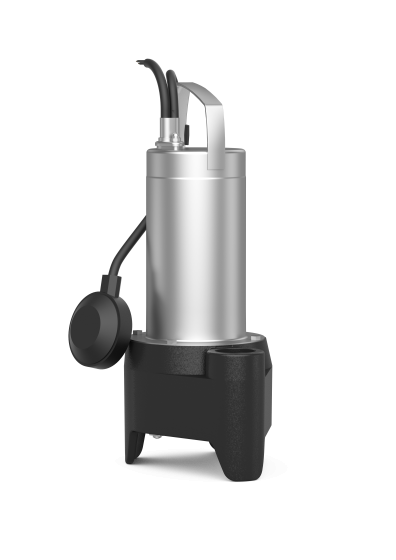

The Rexa MINI3 submersible sewage pump is designed for fixed or mobile installation in wet environments. This pump is suitable for draining houses and land, and for pumping sewage and wastewater without faecal content. Its compact design allows for installation even in narrow drainage trenches. The motor housing is made of stainless steel, while the pump housing is made of grey steel and the impeller is made from composite material. The motor is surface-cooled, with waste heat being dissipated to the surrounding medium. In case of overheating, the motor automatically shuts off and restarts once cooled. There is a sealing chamber filled with white oil between the motor and the hydraulics. On the media side, there is a mechanical seal, and on the motor side, there is a shaft sealing ring.

Features

• 400 VAC power supply
• IP68
• easy access to pump components
• easy maintenance
• 40 mm impeller passage
• 10 m cable
• reliability
• corrosion-resistant impeller
• sealed cable glands
• lightweight

Pump Parts

1	Handle
2	Motor housing
3	Discharge connection
4	Pump housing
5	Float switch
6	Supply cable

Package Contents

• pump
• cable
• installation and operation manual

Characteristics
