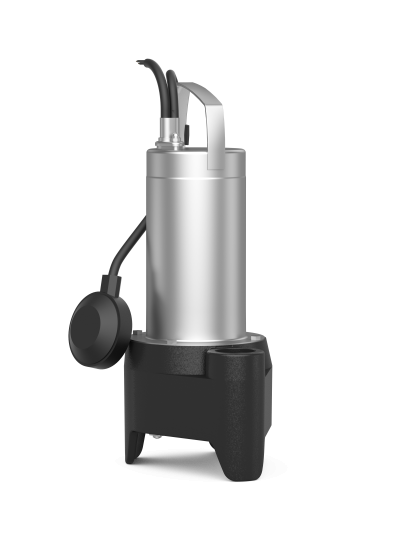

The Rexa MINI3 submersible sewage pump is designed for fixed or mobile installation in wet environments. It is suitable for draining houses and properties, and for pumping sewage and wastewater without fecal content. Its compact design allows for installation even in narrow drainage trenches. The motor housing is made of stainless steel, while the pump housing is made of grey cast iron and the impeller is made of composite material. The motor is surface-cooled and waste heat is dissipated to the surrounding medium. In case of overheating, the motor automatically shuts off and restarts once cooled. There is a sealing chamber filled with white oil between the motor and the hydraulics. On the media side, there is a mechanical seal, and on the motor side, there is a shaft sealing ring.

Features

• 230 VAC power supply
• IP68
• easy access to pump components
• easy maintenance
• 40 mm impeller passage
• 5 m cable with plug
• float switch
• reliability
• corrosion-resistant impeller
• sealed cable glands
• lightweight
• integrated capacitor

Package Contents

• pump
• cable with plug
• float switch
• installation and operation manual

Characteristics
