Switch Cabinet Wilo DOMESTIC CONTROL 1T/10-S GSM (2865002)

Switch Cabinet Wilo DOMESTIC CONTROL 1T/10-S GSM (2865002)

WILO
  • Product code: 2865002
  • Manufacturer code: 2865002
  • Warranty: 2 years

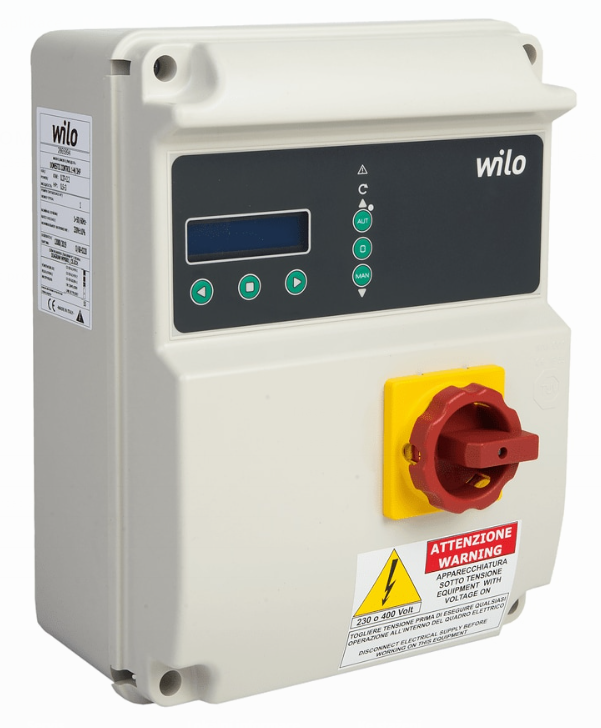

Universal electronic control unit Wilo Domestic control 1T/10-S designed for controlling a single pump with a three-phase motor. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 759,88
Price excluding VAT € 464,72
Price with VAT 21 % € 562,31
+

Parameters and catalogs

Nominal output voltage 3~400 VAC
IP Rating IP 55
Power Supply 3~400 VAC
Weight 2.70 kg

Data sheet download

Download PDF

Wilo Domestic control 1T/10-S GSM is a universal electronic control unit for managing a single pump with a three-phase motor. Thanks to advanced features such as dry-run protection by measuring cosφ and minimum current value, it is ideal for applications requiring emptying or filling operation modes. It offers automatic motor bump test and a range of optional features to optimize operation. The unit is designed for easy operation with a multilingual menu and password protection, which simplifies system setup and management.

Key Features:

  • Operating modes for emptying pits and filling tanks, supporting efficient water supply
  • Advanced features, including automatic motor test and optional pump on/off modes
  • Multilingual menu with password protection and automatic motor parameter configuration
  • Extensive monitoring and alarms, including audio and visual signals, with the option to set alarm delays
  • Inputs for pressure or level sensors and configurable inputs for float switches and pressure switches

Technical Specifications:

  • Input/output voltage 3~400 VAC
  • Min. rated current 2 A, max. rated current for each pump 16 A
  • Protection class IP55 and housing material made of PC for high durability
  • Dimensions: Length 240 mm, Width 145 mm, Height 315 mm

Domestic control is the optimal solution for pump management in water supply applications, offering flexible configuration options and advanced features for maximum efficiency and operational safety.
