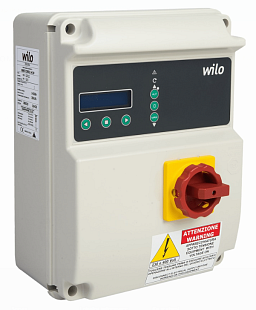

Wilo Domestic control 2M/3-S is a universal electronic control unit designed for the efficient management of up to two pumps with single-phase motors. This device, ready for immediate connection, provides a comprehensive solution for applications where it is necessary to regulate emptying or filling processes, including backup pump operation and advanced protection functions.

Key Features:

• Operating modes for emptying pits and tanks and for filling tanks and water supply systems
• Automatic motor surge test and dry run protection by measuring cosφ and minimum current value
• Multilingual menu with password access protection and automatic motor parameter configuration
• Display indication of voltage, current consumption, motor cosφ, and more
• Alarms and signal outputs for extensive protection and system status monitoring

Technical Specifications:

• Input/output voltage 230 VAC
• Min. rated current 2 A, max. rated current for each pump 16 A
• Protection class IP55 and housing material made of PC for high durability
• Dimensions: Length 240 mm, Width 175 mm, Height 315 mm, Weight 18 kg

Domestic control 2M/3-S is the optimal solution for pump management in water supply applications, offering flexible configuration options and advanced features for maximum efficiency and operational safety.
