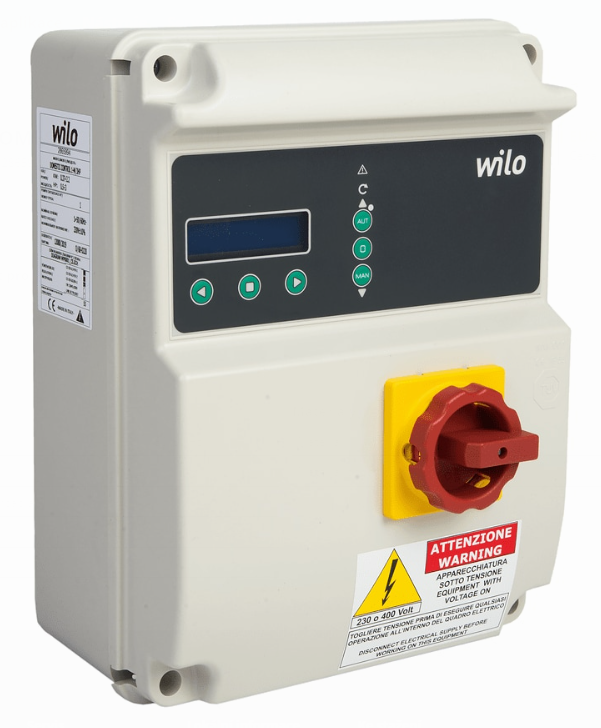

Wilo Domestic control 2T/10-S is a universal electronic control unit designed for managing up to two pumps with three-phase motors. This device, ready for immediate connection, provides a comprehensive solution for applications where it is necessary to regulate emptying or filling processes, including backup pump operation and advanced protection features.

Key Features:

• Operating modes for emptying pits and tanks and for filling tanks and water supply systems
• Automatic motor bump test and dry run protection by measuring cosφ and minimum current value
• Multilingual menu with password access protection and automatic motor parameter configuration
• Display indication of voltage, current consumption, motor cosφ, and more
• Alarms and signal outputs for extensive protection and system status monitoring

Technical Specifications:

• Input/output voltage 3~400 VAC
• Min. rated current 2 A, max. rated current for each pump 16 A
• Protection class IP55 and housing material made of PC for high durability
• Dimensions: Length 240 mm, Width 145 mm, Height 315 mm

Domestic control is the optimal solution for pump management in waterworks applications, offering flexible configuration options and advanced features for maximum efficiency and operational safety.
