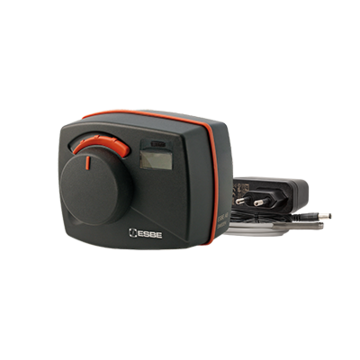

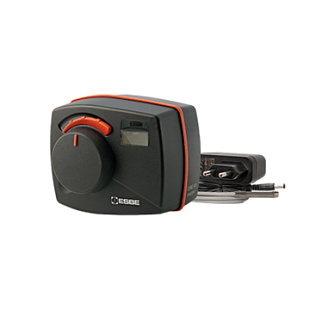

The ESBE CRA200 series is a constant temperature controller with an integrated actuator, designed for ESBE VRG series rotary valves. The ESBE CRA200 series controllers are equipped with smart ESBE software and a self-adaptive system, which not only enhance the device's performance but also allow the controller to be upgraded to manage indoor temperature, weather-compensated temperature, or combined temperature control. If remote control is required, a room unit can be connected. With PWM pump control.

ESBE Smart Software

Enhances performance and allows function expansion.

Integrated Actuator

Designed for ESBE VRG series rotary valves.

Adaptive System

Allows upgrade to advanced temperature control.

Precise and Quiet Regulation

Ensures reliable operation with low noise.

Features:

• Type: Constant temperature controller
• Software: ESBE Smart Software and Self-Adaptive System
• Noise Level: Low noise level
• Control: Precise and accurate
• Upgrade Options:
  • Weather-compensated temperature controller
  • Room temperature controller
  • Combined outdoor and room temperature controller
  • Pump control (ON/OFF)
• Remote Control: Possible via room unit (accessory)
• Pump Control: With PWM pump control

Technical Specifications:

• Reference Number: CRA217
• Voltage: 230 V AC
• Temperature Range: 5 – 95 °C
• Torque: 6 Nm
