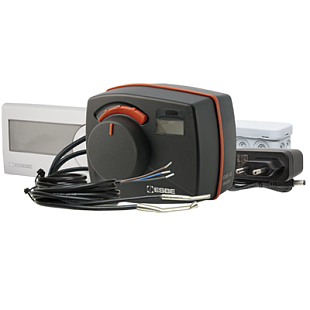

The ESBE CRB200 series is a room temperature controller with an integrated actuator, designed for ESBE VRG series rotary valves. The CRB217 model is equipped with smart ESBE software and a self-adaptive system, ensuring precise indoor temperature control and the possibility of function expansion. The controller comes with a room unit that serves as both a temperature sensor and a control panel. It includes PWM pump control for efficient flow management.

Room Control

Precise indoor temperature control with programming options.

Integrated Actuator

Designed for ESBE VRG series rotary valves.

Adaptive System

Self-learning algorithm for stable and efficient operation.

PWM Pump Control

Speed regulation for optimal energy savings.

Features:

• Type: Room temperature controller
• Software: ESBE Smart Software and Self-Adaptive System
• Control: Room unit (sensor + display)
• Programming options: Daily and weekly timer
• Communication: Wired connection to room unit
• Pump control: PWM regulation (multiple modes)
• Remote control: Possible via room unit

Technical Specifications:

• Reference number: CRB217
• Voltage: 230 V AC
• Temperature range: 5 – 95 °C
• Torque: 6 Nm
