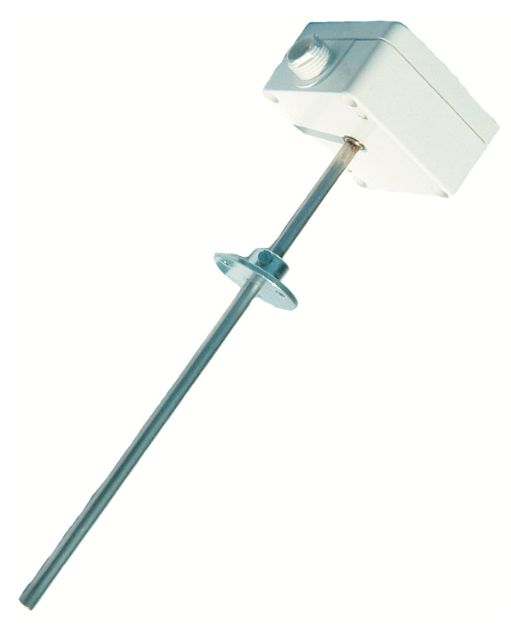

Temperature Sensor 400mm for Duct Ex Schischek TFK-2G3D-400-Pt1000

Temperature Sensor 400mm for Duct Ex Schischek TFK-2G3D-400-Pt1000

Schischek
  • Product code: 4100.9
  • Manufacturer code: 057.1216
  • Warranty: 1 year

Duct temperature sensor suitable for explosive environments. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 339,51
Price with VAT 21 % € 410,81
+

Parameters and catalogs

Atex Zone 22, Zone 2, Zone 1
Measurement range -30...150 °C
Stem length 400 mm
Weight 0.40 kg

Temperature sensor for piping. When connected to the EX-IM-9182 converter, the sensor can be placed in environments with explosion risk in zones 1, 2, and 22. It is suitable for use in residential or office spaces, shops, and industries without the presence of condensing and aggressive air in the surroundings.

Features

  • temperature range -30...150 °C
  • ambient temperature -30...60 °C
  • ATEX zones 1, 2, 22
  • stem length 400 mm
  • protection rating IP 65
