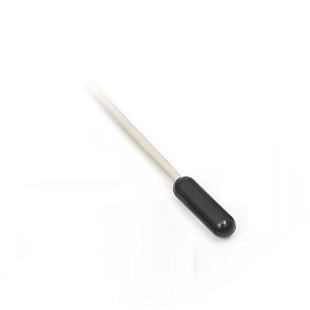

Temperature Sensor SENSIT TR 161 with Ni 1000/6180 Probe

  • 4 variants

Temperature Sensor SENSIT TR 161 with Ni 1000/6180 Probe

SENSIT
  • Product code: 2161030000025O2
  • Manufacturer code: 2240T16100030200060006000202000
  • Warranty: 2 years

The SENSIT TR 161 temperature sensor is equipped with a Ni 1000/6180 sensor. Ideal for measuring solid, bulk, gaseous, and liquid substances. Temperature range -40...105 °C. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 14,96
Price excluding VAT € 11,74
Price with VAT 21 % € 14,21

Product variants

+

Parameters and catalogs

Measurement range -40...105 °C
Sensor type Ni 1000/6180
Weight 0.20 kg

Data sheet download

Download PDF

The SENSIT TR 161 temperature sensor is equipped with a Ni 1000/6180 sensor. Ideal for measuring solid, bulk, gaseous, and liquid substances. Temperature range -40...105 °C. Thanks to the sensor's design, a quick response to temperature changes is ensured, especially when using silicone grease or thermally conductive paste for better thermal contact. The sensors are intended for use in chemically non-aggressive environments, and their use must be adapted to the temperature and chemical resistance of the casing and the supply cable.

Main features:

  • Temperature range: -30...150 °C.
  • Protection: IP 67
  • Casing diameter 8mm
  • Casing length 25 mm
  • Casing material: nickel-plated steel or duralumin, offering durability and long-term lifespan.

Technical specifications:

  • Sensor types: Ni 1000/6180
  • Supply cable length: 2 m
  • Two-wire design
