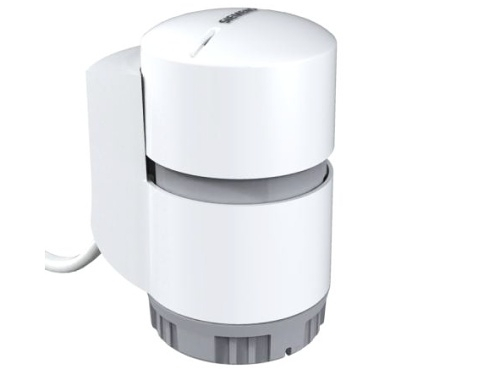

Electrothermal actuator 230 V Siemens STP 23

Electrothermal actuator 230 V Siemens STP 23

SIEMENS
  • Product code: 37.9
  • EAN : 7612914088192
  • Manufacturer code: STP23
  • Warranty: 2 years

Electrothermal actuator with stroke 4,5mm. Power supply 230 VAC. Retracted spindle without voltage. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Would you like to get a price offer? Contact us

Parameters and catalogs

Auxiliary contact No
Connection size M30
Control 2-point
Function Normally open
Power 230 VAC
Weight 0.18 kg

Datasheet download

Download PDF

Electrothermal actuator STP 23 for radiator and zone valves. Mounting using a sliding sleeve lock (bayonet). The actuator includes a position indicator and a 1m connection cable.

Usage

  • Control of terminal units on the water side, heating and cooling zones
  • Combination with Siemens radiator valves (VDN, VEN, VPD, VPE ....)
  • Can be combined with other radiator valves (Heimeier, Cazzaniga, Oventrop M30 x 1.5, Honeywell-Braukmann and MNG - no adapter required)

Features

  • Power supply 230V
  • Adjustment time 210s
  • 2-position control
  • Connection cable 1m
  • Stroke 4,5mm
  • Normally open
