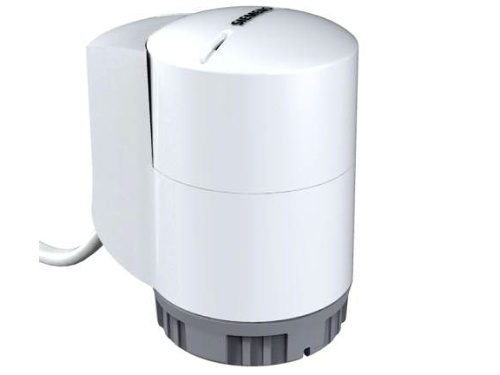

Thermoelectric Actuator AC 230 V 2-point Siemens STA 23HD

Product code: 35003A6
EAN : 7612914088239
Manufacturer code: STA23HD
Warranty: 2 years

Thermoelectric actuator with a stroke of 4.5 mm. Power supply 230 VAC. Spindle extended when de-energized. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Auxiliary contact	0...5 V
Connection size	M30
Control	-40...180 °C
Function	Closed without voltage
Power Supply	230 VAC
Weight	0.17 kg

Datasheet download

Download PDF

Thermoelectric Actuator STA 23HD for underfloor heating manifolds. Actuation force 90 N. Installation on the valve is done using a sliding sleeve with a bayonet fitting. The actuator includes a position indicator and a 0.8 m connection cable.

Application

Control of terminal units on the water side, heating and cooling zones
Combination with Siemens radiator valves (VDN, VEN, VPD, VPE....)
Can also be combined with radiator valves from other manufacturers (Heimeier, Cazzaniga, Oventrop M30 x 1.5, Honeywell-Braukmann and MNG - without the need for an adapter)
