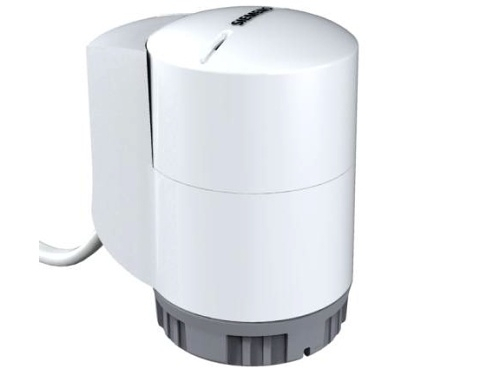

Thermoelectric Actuator AC/DC 24 V 2-Point Siemens STA 73HD (STA73HD)

  • 2 variants

Thermoelectric Actuator AC/DC 24 V 2-Point Siemens STA 73HD (STA73HD)

SIEMENS
  • Product code: 35003A5
  • EAN : 7612914088222
  • Manufacturer code: STA73HD
  • Warranty: 2 years

Thermoelectric actuator with a stroke of 4.5mm. Power supply 24 AC/DC. Spindle retracted when de-energized. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Product variants

Parameters and catalogs

Auxiliary contact 0...5 V
Connection size M30
Control -40...180 °C
Function Closed without voltage
Power Supply 24 VDC, 24 VAC
Weight 0.15 kg

Datasheet download

Download PDF

Thermoelectric actuator STA 73HD for underfloor heating manifolds. Actuation force 90 N. Mounting on the valve is done using a sliding sleeve with a bayonet catch. The actuator includes a position indicator and a 0.8 m connection cable.

Application

  • Control of terminal units on the water side, heating and cooling zones
  • Combination with Siemens radiator valves (VDN, VEN, VPD, VPE....)
  • Can also be combined with radiator valves from other manufacturers (Heimeier, Cazzaniga, Oventrop M30 x 1.5, Honeywell-Braukmann and MNG - without the need for an adapter)

Features

  • Power supply 24V
  • Adjustment time 270s
  • 2-position control
  • Connection cable 0.8 m
  • Stroke 4.5mm
  • Valve closed when de-energized
