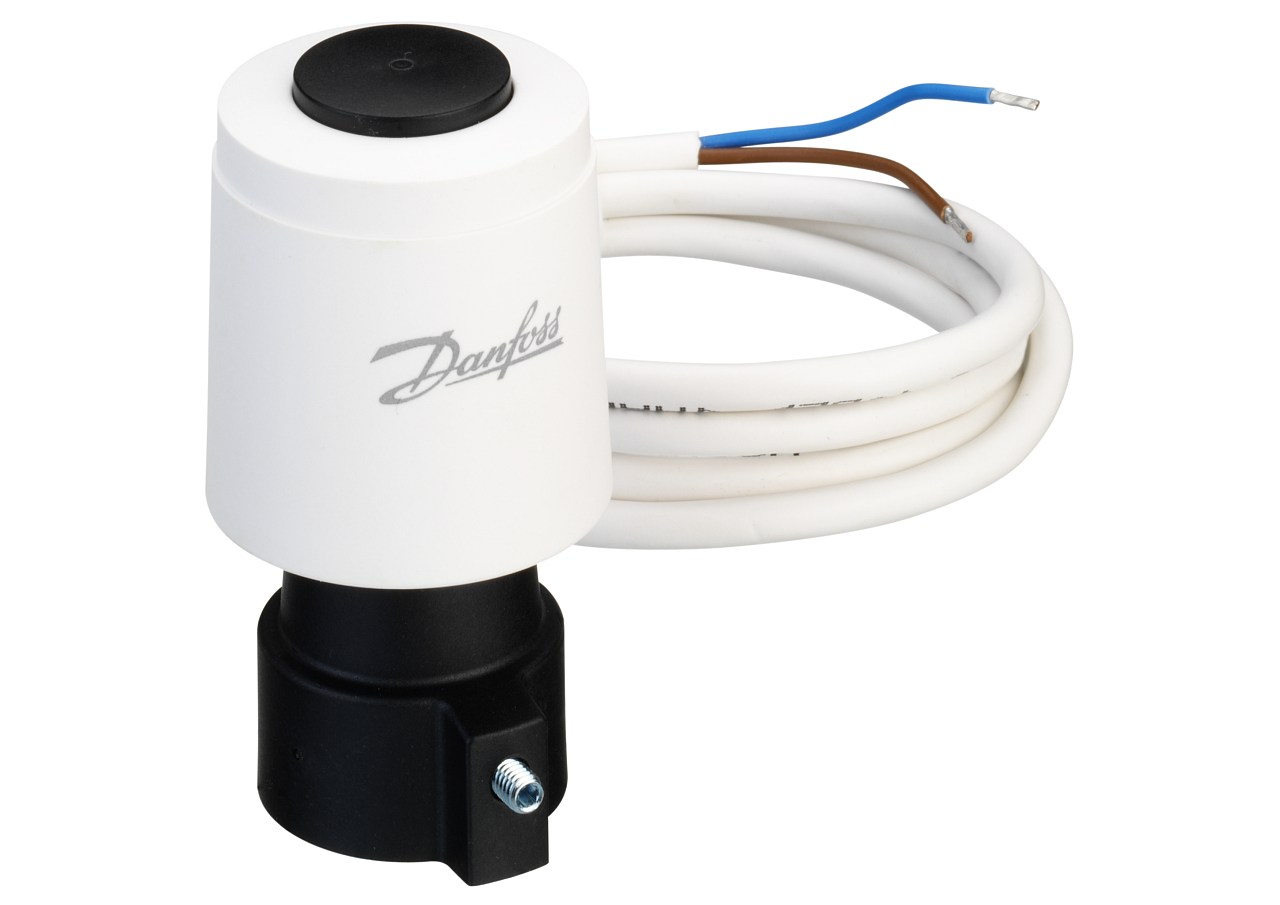

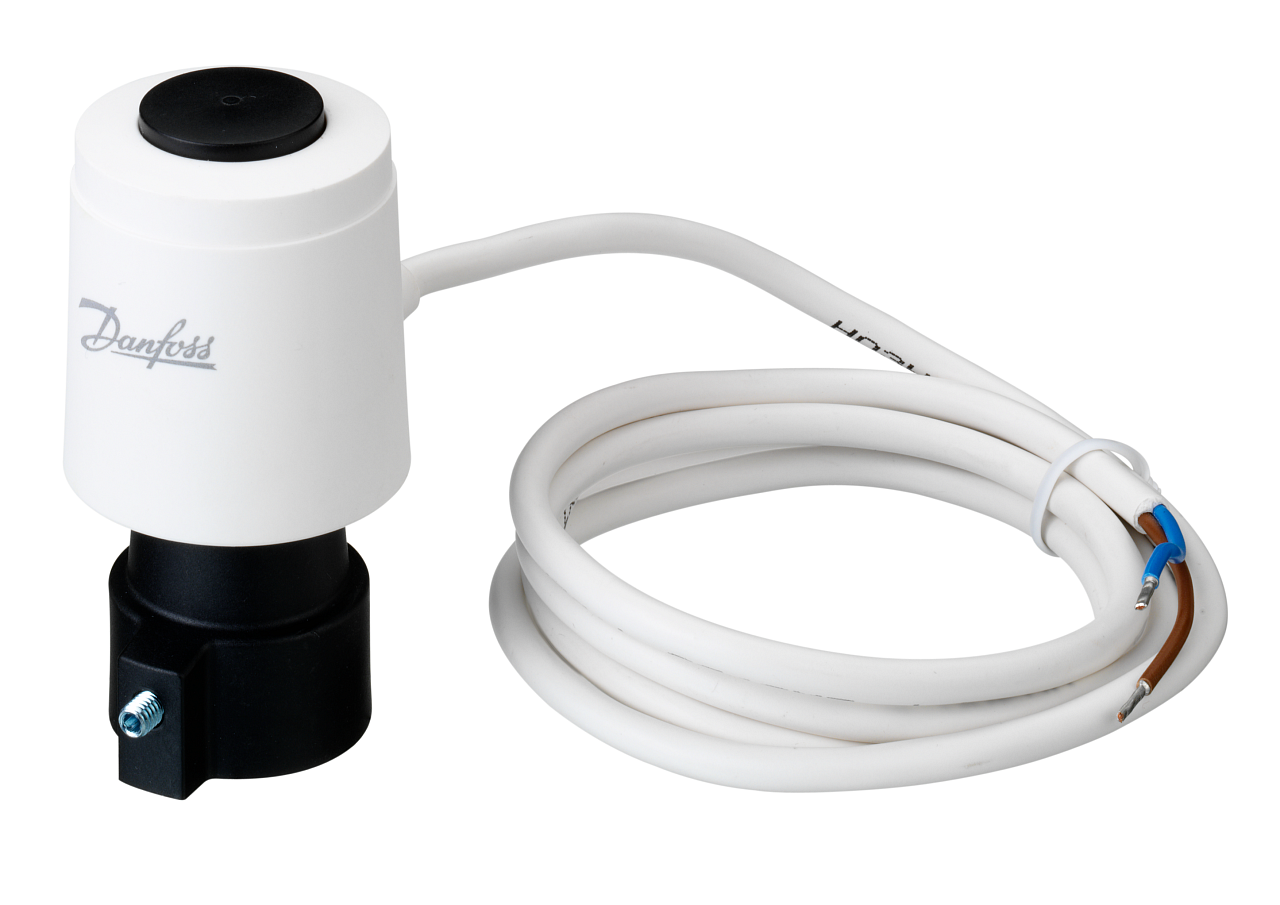

Thermoelectric actuator Danfoss TWA-A with 24 V power supply. Cable length 0.95 m, normally open. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Auxiliary contact | 0...5 V |
| Cable length | 0.95 m |
| Control | -40...180 °C |
| Function | Normally open |
| IP Rating | IP 41 |
| Power Supply | 24 VDC, 24 VAC |
| Weight | 0.13 kg |
The TWA-A actuator is used in conjunction with Danfoss RA series valves and VK radiators. Thanks to the installed visual indicator, the actuator shows the current position of the connected valve (closed/open). In the event of a power failure, the actuator opens the valve. The actuator is powered by a cable with a length of 0.95 m.
1 Red 2 Black 3 Green 4 Green
* 24 V~ Transformer, Class II (SELV)
** 230 V max. 3 A pre-fuse
Note! All NC versions of the actuator are equipped with a red plastic lock, securing the actuator in the "open" position, facilitating the initial installation of the actuator on the valve. After installation is complete, this lock must be removed to allow proper movement and function of the valve actuator.
