Thermoelectric actuator for reliable opening/closing of valves in heating and cooling systems, suitable for two-point ON/OFF control as well as PWM. More information
Out of stock - can be requested
| Cable length | 5 m |
| Connection | M30x1.5 |
| Control | On/Off |
| Function | Closed without voltage |
| IP Rating | IP 54 |
| Lift | 4.7 mm |
| Power Supply | 230 VAC |
| Weight | 0.00 kg |

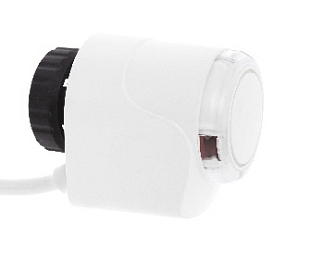

The IMI TA EMO T thermo-electric actuator is designed for controlling thermostatic valves and balancing/regulating valves in terminal units. It is suitable for two-point ON/OFF control as well as PWM pulse control, and its high closing force ensures reliable operation in practice. The NC (normally closed) variant is closed without power; when power is applied, it opens smoothly after a short delay. The IP54 rating allows for safe operation in any mounting position, and the position indicator is visible from all sides for easy operation.
| Power Supply | 230 VAC (50–60 Hz) |
| Control / Regulation | ON/OFF or PWM (two-point control) |
| Design | NC (closed without power) |
| Protection Rating | IP54 |
| Valve Connection | M30x1.5 |
| Closing Force | 125 N |
| Stroke | 4.7 mm |
| Ambient Temperature | –5...50 °C |
| Max. Medium Temperature | 120 °C |
| Cable | 5 m, 2 × 0.75 mm² |
| Protection Class / Certification |
