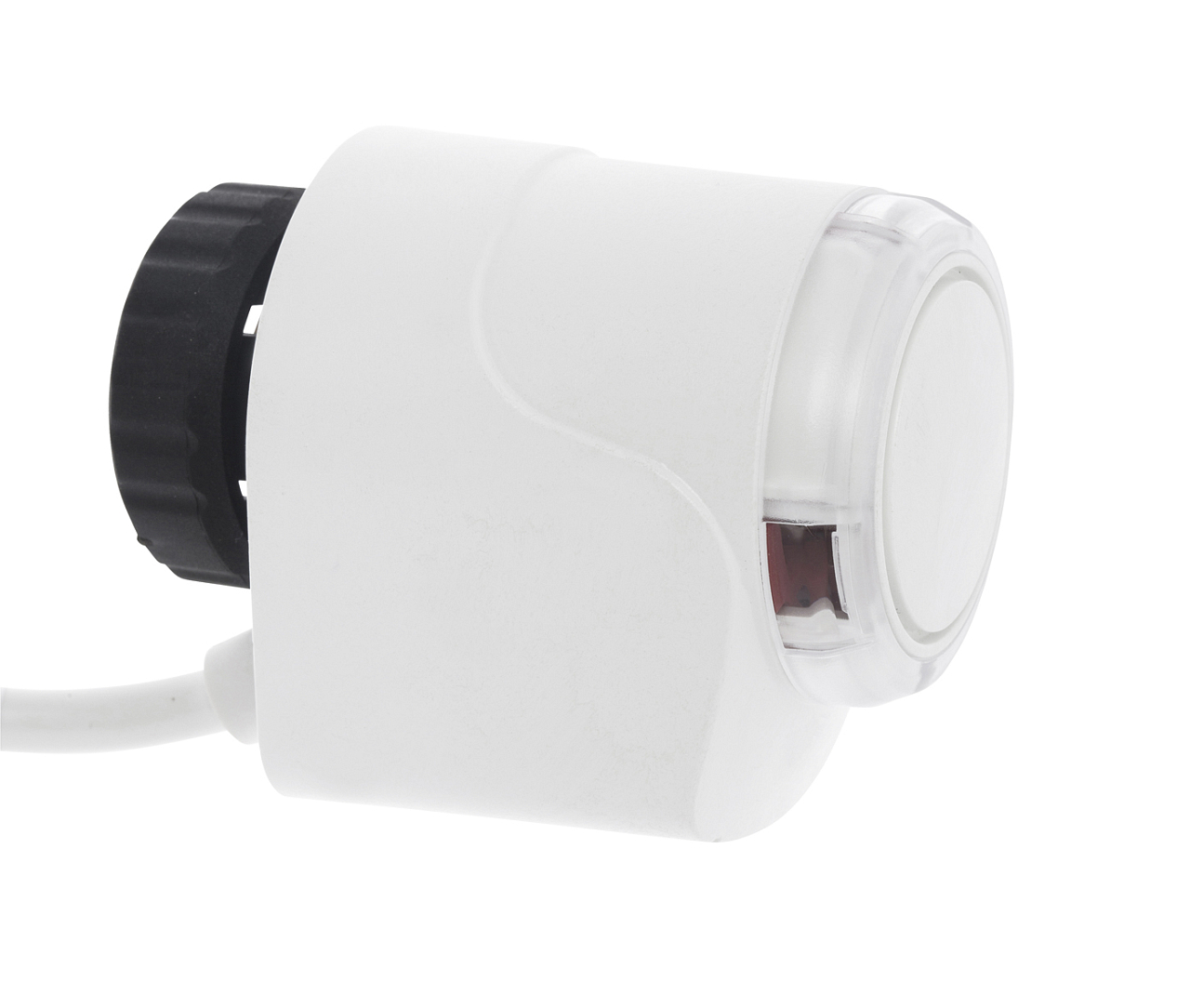

Thermoelectric actuator TA EMO-T with 230 V power supply and normally open function. 0.8 m halogen-free cable. More information
Out of stock - can be requested
| Auxiliary contact | 0...5 V |
| Cable length | 0.8 m |
| Connection size | M30 x 1.5 |
| Control | -40...180 °C |
| Function | Normally open |
| IP Rating | IP 54 |
| Lift | 4.7 mm |
| Medium Temperature | 120 °C |
| Power Supply | 230 VAC |
| Weight | 0.15 kg |
Technical sheet download
Download PDFThe EMO-T actuator is a highly efficient servomotor for ON/OFF control of thermostatic, regulating, and balancing valves with an M30x1.5 connection. The position of the actuator is displayed on the cover and is visible from all angles. The actuator boasts a large closing force of 125 N.
The actuator is suitable for use in heating applications, cooling systems, and air conditioning. By controlling the flow of the heating or cooling medium through the valve, it regulates the temperature in the room or selected zone. In the event of a power failure, the actuator automatically switches the valve to the open position, thus opening the flow.
With the purchase of appropriate adapters, the actuator can also be connected to radiator valves from other manufacturers, such as Danfoss RA, Herz M28x1.5, and others. For cases of higher load and increased risk of damage, it is recommended to purchase a special cover that protects the actuator even from theft.
The cable is halogen-free.
