Thermoelectric actuator for reliable opening/closing of valves in heating and cooling systems, suitable for two-point ON/OFF control as well as PWM. More information
Out of stock - can be requested
| Cable length | 2 m |
| Connection | M30x1.5 |
| Control | On/Off |
| Function | Normally open |
| IP Rating | IP 54 |
| Lift | 4.7 mm |
| Power Supply | 230 VAC |
| Weight | 0.00 kg |

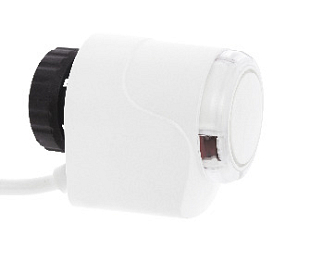

The IMI TA EMO T thermo-electric actuator is designed for controlling thermostatic valves and balancing/regulating valves in terminal units. It is suitable for two-point ON/OFF control as well as pulse-width modulation (PWM) control, and its high closing force ensures reliable operation in practice. The NC (normally closed) variant is closed without voltage; upon applying voltage, it opens smoothly after a short delay. The IP54 protection allows safe operation in any installation position, and the position indicator is visible from all sides for easy operation.
| Power Supply | 230 VAC (50–60 Hz) |
| Control/Regulation | ON/OFF or PWM (two-point control) |
| Version | NC (opens without voltage) |
| Protection | IP54 |
| Valve Connection | M30x1.5 |
| Closing Force | 125 N |
| Stroke | 4.7 mm |
| Ambient Temperature | –5...50 °C |
| Max. Medium Temperature | 120 °C |
| Cable | 2 m, 2 × 0.75 mm² |
