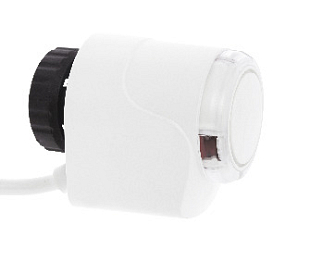

Thermoelectric Actuator IMI TA EMO T NO 24V AC/DC Cable 5 m (184702500)

Thermoelectric Actuator IMI TA EMO T NO 24V AC/DC Cable 5 m (184702500)

Thermoelectric Actuator IMI TA EMO T NO 24V AC/DC Cable 5 m (184702500)

IMI
  • Product code: 184702500
  • EAN : 4024052837014
  • Manufacturer code: 184702500
  • Warranty: 2 years

Thermoelectric actuator IMI TA EMO T NO 24 VAC/VDC for ON/OFF or PWM control of M30x1.5 valves, IP54 protection, 5 m cable. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 54,55
Price with VAT 21 % € 66,01
− +

Trustpilot

Parameters and catalogs

Cable length 5 m
Connection M30x1.5
Control On/Off
Function Normally open
IP Rating IP 54
Lift 4.7 mm
Power Supply 24 VAC
Weight 0.00 kg

The IMI TA EMO T thermo-electric actuator in the NO (normally open) version is designed for two-point ON/OFF control or pulse width modulation PWM. It is suitable for use with thermostatic valves as well as control and balancing valves for terminal units (e.g., TBV-C and TA-COMPACT-P).

The actuator offers a high class of electrical protection, IP54 rating for safe operation in any mounting position, and a practical position indicator visible from all sides. Connection to the valve is via a M30x1.5 thread. A connection cable with a length of 5 m is included.

Main Features

  • NO version – normally open (suitable for specific control strategies).
  • ON/OFF and PWM control for heating, HVAC, and cooling.
  • High closing force of 125 N and a stroke of 4.7 mm for reliable operation.
  • IP54 rating for safe operation in any mounting position.
  • M30x1.5 connection – compatible with IMI TA and IMI Heimeier valves/inserts with M30x1.5 thread.

Technical Specifications

Power Supply 24 VAC/VDC (+25% / -20%)
Control ON/OFF, PWM
Version NO (normally open)
Closing Force 125 N
Stroke 4.7 mm
Protection Rating IP54
Ambient Temperature -5...50 °C
Max. Medium Temperature 120 °C
Storage Temperature -25...70 °C
Valve Connection M30x1.5
Cable Length 5 m
Certification CE, EN 60730-2-14
