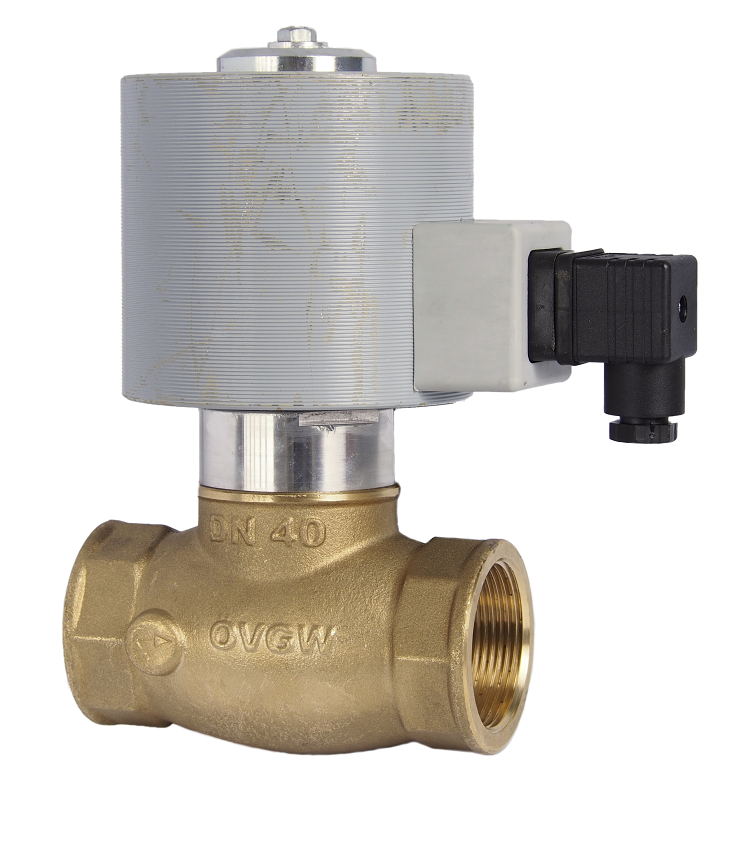

Two-way solenoid gas valve PEVEKO EVPE 1040.22/B

Two-way solenoid gas valve PEVEKO EVPE 1040.22/B
  • 3 variants

Two-way solenoid gas valve PEVEKO EVPE 1040.22/B

PEVEKO
  • Product code: 5575.1.22
  • Manufacturer code: EVPE M1040.100.*2
  • Warranty: 2 years

Two-way solenoid valve PEVEKO DN40. Suitable for gaseous fuels including propane-butane. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 435,64
Price with VAT 21 % € 527,12

Product variants

− +

Trustpilot

Parameters and catalogs

Atex Yes
Connection size 1 1/2"
Connection Type Internal thread
Function Closed without voltage
Gasket NBR
Medium DN 13
Medium Temperature 80 °C
Nominal diameter DN 40
Power Supply 24 VDC
Pressure Medium pressure
Weight 5.70 kg

Datasheet download

Download PDF

Electromagnetic, direct-operated valve. The valve is used for two-position control of gaseous fuel flow. We recommend placing a dirt filter before the valve.

Features:

  • two-way valve
  • normally closed (NC)
  • DN 40 / internal thread
  • operating overpressure 0-100 kPa (class A) - option to select class B 70 kPa
  • suitable for gaseous fuels including propane-butane
  • medium temperature max. 80 °C
  • switching time max. 1s
  • protection class IP 54

The valve is supplied including a power coil and connector.
