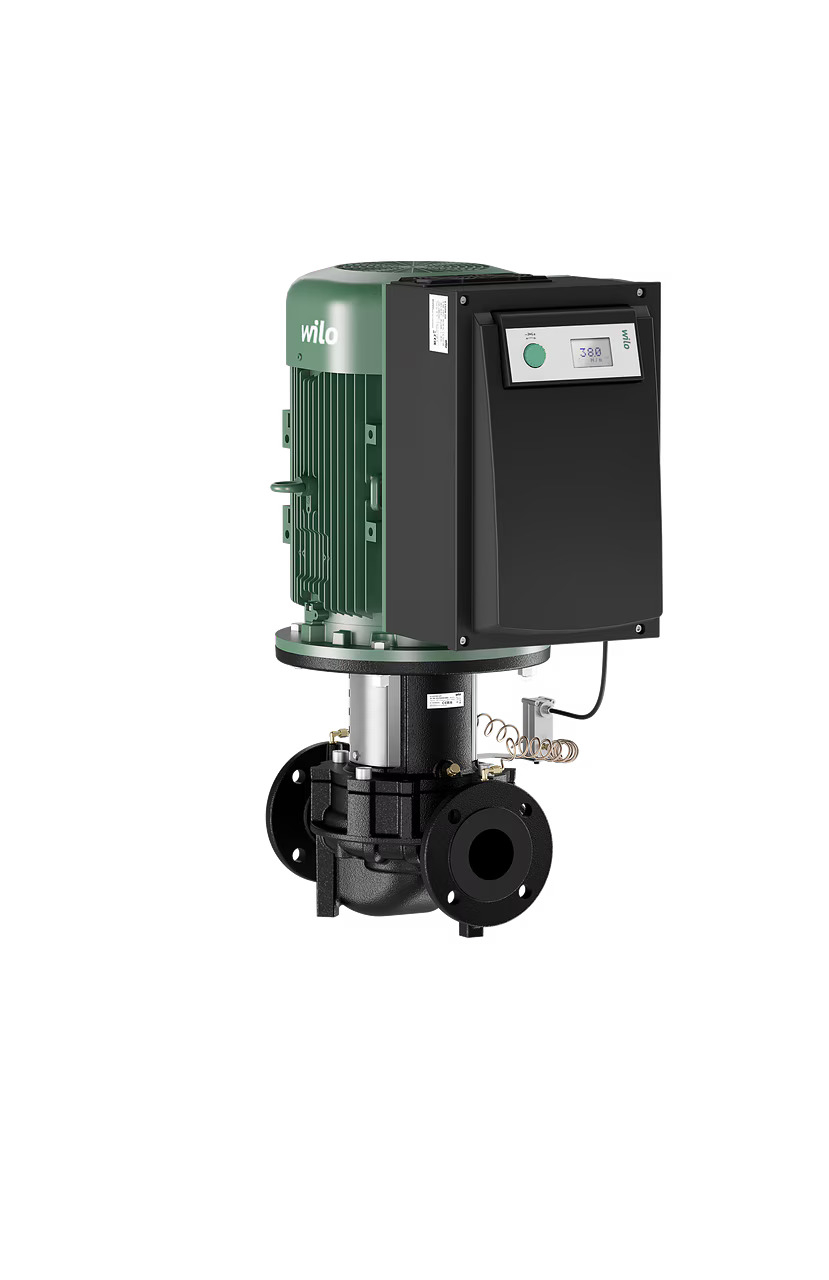

Wilo CronoLine IL-E50/160-5.5/2 Inline Centrifugal Pump (2159316)

Wilo CronoLine IL-E50/160-5.5/2 Inline Centrifugal Pump (2159316)

WILO
  • Product code: 2159316
  • EAN : 4048482663388
  • Manufacturer code: 2159316
  • Warranty: 2 years

Inline pump with frequency converter, high efficiency IE4, and differential pressure control, for heating and cooling applications. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx Freight:
    2.3 workdays € 61,71
  • In external stock 2 pcs

List price € 8 864,46
Price excluding VAT € 5 128,20
Price with VAT 21 % € 6 205,12
+

Parameters and catalogs

Frequency converter Yes
IP Rating IP 55
Operating pressure PN 16
Power Supply 400 VAC
Pump flow rate 60 m3/h
Pump head 32 m
Weight 122.00 kg

Catalog sheet download

Download PDF

The Wilo CronoLine IL-E 50/160-5.5/2 is an intelligent, dry-running centrifugal pump with an integrated frequency converter, designed for operation in heating, cooling, and industrial systems. It is intended for installation in piping within a spiral casing with an inline design and DN 50 flanges.

The IE4 energy class motor with a power output of 5.5 kW ensures high efficiency and, together with differential pressure control (Δp-c, Δp-v), allows optimal adaptation to the current needs of the system. The integrated interface for both analogue and digital signals and the option to add IF modules allow easy integration into building management systems.

Main Features

  • Single-stage low-pressure pump with inline design
  • Energy-efficient IE4 motor with integrated converter
  • Differential pressure control (Δp-c, Δp-v) and PID control
  • Interface for remote control and communication (Modbus, BACnet, etc.)
  • Display indicating mode, speed, consumption, and errors
  • Mechanical seal for media up to 140 °C
  • Robust cast iron construction with KTL coating
  • Suitable for water, glycol mixtures, and cooling media

Technical Specifications

Nominal motor power 5.5 kW
Mains connection 3~380–440 V, 50/60 Hz
Motor efficiency class IE4
Motor protection class IP55
Speed 2960 1/min
Max. operating pressure 16 bar (up to 120 °C), 13 bar (up to 140 °C)
Media temperature –20...140 °C
Connections DN 50 (suction and discharge)
Pump casing material Grey cast iron with KTL surface treatment
Impeller material Grey cast iron
Shaft material Stainless steel
