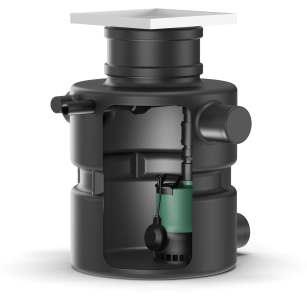

Pumping station designed for pumping pre-treated wastewater without the presence of faeces and long fibres. The station is equipped with complete piping, a submersible sludge pump TMW32/11, and a non-return valve. Everything is housed in a plastic shaft cover for underground installation with two inflow options (DN 100).

Pump

The pump is ready for fully automated operation. It features a float switch and thermal motor control. The motor is cooled by the surrounding medium, dissipating its residual heat to the environment through its casing. In case of overheating, the pump switches off and restarts once it cools down. The hydraulics are separated from the motor by a sealing chamber filled with white oil. On the motor side, there is a shaft sealing ring, and on the hydraulic side, a mechanical seal.

Twister Function (Agitation)

The TMW sludge pump is equipped with the so-called "agitation". In practice, this means that due to its design, there is constant agitation in the suction area. This method ensures the cleanliness of the pumping sump. Thanks to the "agitation" feature and the associated removal of sedimenting substances, no odour is caused by the pumped medium. The agitation function can be deactivated, which increases the pump's performance by 1 m.

Features

• 230 VAC power supply
• 10 m power cable with Schuko plug
• IP68
• shaft volume 113 l
• switching volume 24-29 l
• discharge connection 40 mm
• inflow connection 100 mm
• max. medium temperature 35 °C, can pump medium at 60 °C for up to 3 minutes

Delivery Contents

• assembled water pumping device (pump, piping, non-return valve)
• tank cover with cladding frame and floor drain
• rough construction cover
• O-ring for sealing the tank cover
• pressure hose (diameter 40 mm) including hose clamps
• installation and operation manual
