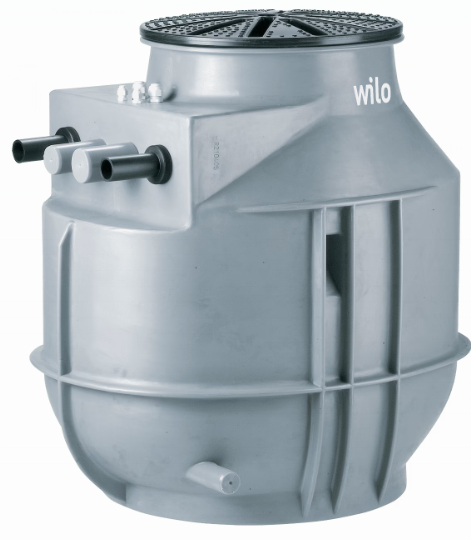

DrainLift WS 50E BASIC/UNI V05/M06-523 is a plastic pumping station with a separate pump designed for the collection and transportation of wastewater in commercial areas, particularly for wastewater containing sewage. This device is suitable for underground installation or installation within a building where wastewater cannot be discharged by natural gravity into the sewer system. The station is designed for optimal operation without sedimentation, with ribbing for high structural rigidity and is equipped with inlets that can be freely selected.

Main features:

• Maximum operating pressure: 1 bar
• Operating media temperatures from 3 °C to 40 °C
• Gross tank volume: 255 l, with a switching volume of 75 l
• Material of the station and pump: PE and PP-GF30, with a shaft and motor made of stainless steel
• Connections: suction DN100/DN150, discharge Ø63/G2½"A, ventilation Ø75

The pump is a submersible sewage pump for single-phase connection, with a surface-cooled motor and thermal protection. The level is controlled by a float switch, and the device is supplied with piping, a shut-off ball valve, a ball check valve, and a pump with a float switch and plug.

DrainLift WS 50E BASIC/UNI V05/M06-523 provides an efficient solution for drainage in locations where high reliability and load resistance are required. It is ideal for applications in commercial areas where it is necessary to process wastewater containing sewage in accordance with EN 12050-1 standard.
