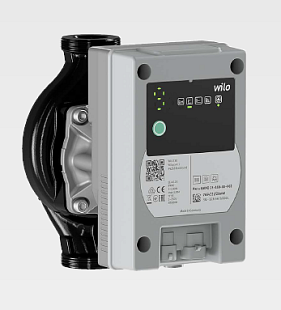

WILO Para MAXO-Z 30-180-08-F02 Circulating Pump (2213571)

WILO Para MAXO-Z 30-180-08-F02 Circulating Pump (2213571)

WILO Para MAXO-Z 30-180-08-F02 Circulating Pump (2213571)

WILO
  • Product code: 2213571
  • EAN : 4062679129174
  • Manufacturer code: 2213571
  • Warranty: 2 years

Highly efficient circulation pump designed for potable water applications, such as domestic hot water circulation systems. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Building length 180 mm
Control F02
Frequency 50/60 Hz
IP Rating IP X4D
Max. operating pressure 10 bar
Medium Temperature 0...85 °C
Nominal diameter DN 30
Power Supply 230 V
Pump head 8 m
Weight 3.23 kg

Catalog sheet download

Download PDF

Highly efficient circulation pump designed for potable water applications, such as domestic hot water circulation systems. The pump offers reliable operation with low energy consumption and easy integration into various control systems.

Key Features

  • Maximum operating pressure: 10 bar
  • Permissible media temperature: 0...85 °C
  • Protection class: IPX4D
  • Energy efficiency: EEI ≤ 0.20

Technical Specifications

  • Power supply: 1~230 V ±10 %, 50/60 Hz
  • Materials: stainless steel (body), carbon-graphite (bearings)
  • Cable: yes
  • Boiler / heat pump (for manufacturer): Master Therm

The pump is equipped with various differential pressure control modes and is easy to install thanks to its compact dimensions and connection options.
