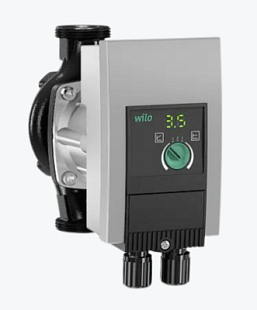

WILO Yonos PARA HF 25/12 PN10 Circulating Pump (2158743)

WILO Yonos PARA HF 25/12 PN10 Circulating Pump (2158743)

WILO Yonos PARA HF 25/12 PN10 Circulating Pump (2158743)

WILO
  • Product code: 2158743
  • EAN : 4048482574059
  • Manufacturer code: 2158743
  • Warranty: 2 years

The circulation pump is designed for high flow in HVAC applications, such as heating and cooling systems. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Connection size 1"
Connection Type Internal thread
Frequency 50/60 Hz
IP Rating IP X4D
Max. operating pressure 10 bar
Medium Temperature -20..110°C
Power Supply 230 V
Pump head 12 m
Weight 5.00 kg

Catalog sheet download

Download PDF

The circulation pump is designed for high flow in HVAC applications, such as heating and cooling systems. The pump offers energy-efficient operation thanks to integrated speed control and easy installation.

Key Features

  • Maximum head: 12 m
  • Maximum operating pressure: 10 bar
  • Medium temperature range: -20..110 °C
  • Energy efficiency: EEI ≤ 0.23
  • Protection class: IPX4D
  • Cable: yes

Control Options

  • Δp-v (variable pressure) and Δp-c (constant pressure) modes
  • Performance setting via three fixed speeds
  • Volt-free contact for collective fault reporting

The pump is equipped with a threaded connection DN 25 (Rp 1) and a compact design, which facilitates its installation in various systems and ensures quiet operation with minimal maintenance.
