Stainless steel motorized ball valve for water, glycol, and oils, featuring a normally open (NO) function and powered by 9–24 VAC/DC, suitable for heating, cooling, and industrial applications. More information
Out of stock - can be requested
| Connection size | 3/4" |
| Connection Type | Internal thread |
| Medium | Water, Oil, Air |
| Medium Temperature | 0...90 °C |
| Nominal diameter | DN 20 |
| Pressure | PN 10 |
| With actuator | Yes |
| Weight | 0.51 kg |
Data sheet download

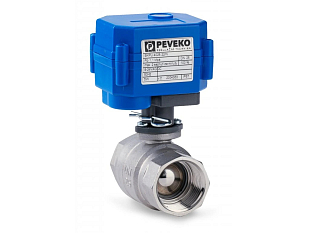

Download PDFThe PEVEKO SKPUI 4020.20 motorised ball valve is designed for the automatic control of water flow, drinking water, glycol mixtures, air, or oils. Thanks to its full-bore design and stainless steel body, it is suitable for heating, cooling, solar heating, and industrial installations.
The NO – normally open version allows for safe media flow control in the event of a power failure. The compact actuator with low power consumption ensures quiet operation and a long lifespan of over 100,000 cycles.
| Valve Type | Motorised ball valve |
| Function | NO – normally open |
| Power Supply | 9–24 VAC/DC |
| Connection | Internal thread Rp 3/4" |
| Nominal Diameter | DN 20 |
| Working Pressure | max. 10 bar |
| Operating Overpressure | 0–8 bar |
| Media Temperature Range | 0...90 °C |
| Body Material | Stainless steel 304 |
| Sealing | PTFE, EPDM O-ring |
| Actuator Protection | IP67 |
