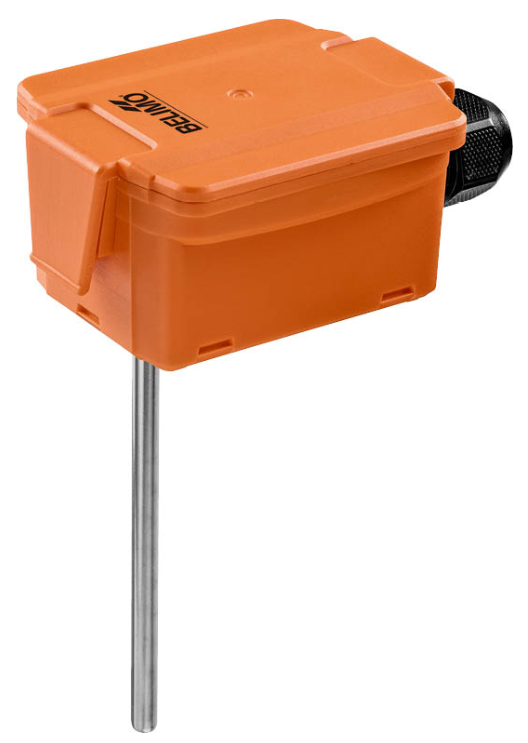

Belimo 22DT-14L duct temperature sensor

Belimo 22DT-14L duct temperature sensor
  • 2 variants

Belimo 22DT-14L duct temperature sensor

BELIMO
  • Product code: 22DT-14L
  • Manufacturer code: 22DT-14L
  • Warranty: 2 years

Channel temperature sensor Belimo 22DT-14L, probe length 100 mm. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 164,83
Price without VAT € 65,39
Price with VAT 21 % € 79,12

Varianty produktu

− +

Would you like to get a price offer? Contact us

Trustpilot

Parameters and catalogs

Measuring range 0...50 °C, 0...250 °C, 0...160 °C, 0...100 °C, -50...50 °C, -20...80 °C, -15...35 °C, -10...120 °C
Sensor type Pt 1000
Stem length 100 mm
Weight 0.13 kg

CATALOG SHEET download

Download PDF

The Belimo 22DT-14L active sensor measures the temperature in the air ducts. When used with a sump, it can also be used to measure the temperature in the pipeline.

Properties

  • probe length 100 mm
  • probe diameter 6 mm
  • output signal 4 ... 20 mA
  • 24 VDC power supply
  • Pt1000 sensor type
  • 8 selectable measuring ranges
  • IP65 protection

Measuring ranges
S0 -50 ... 50 ° C
S1 -10 ... 120 ° C
S2 0 ... 50 ° C
S3 0 ... 250 ° C
S4 -15 ... 35 ° C
S5 0 ... 100 ° C
S6 -20 ... 80 ° C
S7 0 ... 160 ° C
