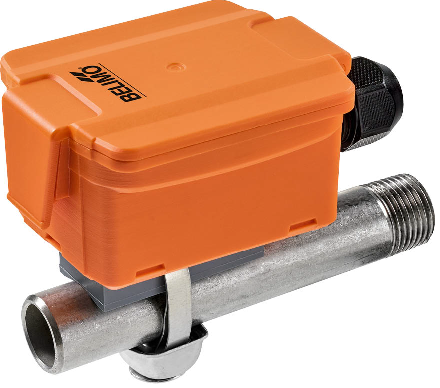

The 22HT-12 is an active strap-on temperature sensor for pipeline applications, offering an output signal of 0...10 V for precise and rapid response to temperature changes thanks to a spring-loaded brass contact pin. It is suitable for use in water with eight selectable measuring ranges, allowing its adaptability for a wide range of applications. The design based on a Pt1000 sensor 1/3 DIN ensures reliable and accurate temperature measurement.

Features:

• Output signal: Adjustable 0...5 V or 0...10 V via jumper
• Measuring ranges: -50°C to +250°C with factory settings for various applications
• Accuracy: ±0.5°C at 21°C in ranges S2 and S4
• Materials: Housing made of orange PC, UV-resistant, NBR70 gasket
• Safety: Protection class IP54, protection class III, IEC/EN 60730-1 certification

The strap-on sensor is designed with an emphasis on easy installation and long-term stability (±0.04°C per year), and is complemented by accessories such as mounting straps for various pipe diameters and a syringe with thermal conductive paste. The device is intended for stationary systems in heating, ventilation, and air conditioning applications and must not be used outside the specified area of use. All installations and maintenance should be carried out by trained personnel in accordance with applicable regulations and standards.
