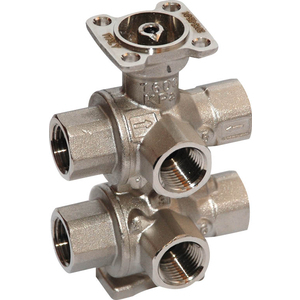

Belimo 6-way control ball valve, DN15 (R3015-1P3-P63-B2)

Belimo 6-way control ball valve, DN15 (R3015-1P3-P63-B2)
  • 3 variants

Belimo 6-way control ball valve, DN15 (R3015-1P3-P63-B2)

BELIMO
  • Product code: R3015-1P3-P63-B2
  • Manufacturer code: R3015-1P3-P63-B2
  • Warranty: 2 years

It is designed for closed circuits of cold and hot water, for use in heating and cooling systems. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 348,59
Price excluding VAT € 138,28
Price with VAT 21 % € 167,32

Product variants

− +

Trustpilot

Parameters and catalogs

Connection size DN 15
Connection Type Internal thread
Medium 0...1.6 bar
Medium Temperature 6...80 °C
Pressure PN 16
Type of fitting Six-way
Weight 1.10 kg

Technical sheet download

Download PDF

It is designed for closed circuits of cold and hot water, used in heating and cooling systems. The valve is operated by a 90° rotary actuator and allows for two sequences of regulation. This device is suitable for applications where switching or continuous regulation on the water side of thermal elements is required.

Technical Specifications

  • Nominal diameter: DN15
  • Internal thread: Rp 1/2"
  • Flow values: kvs 1.3 / 0.63 m³/h
  • Operating pressure: PN 16
  • Fluid temperature: 6...80°C

Materials

  • Valve body: nickel-plated brass
  • Seat: PTFE
  • Seal: EPDM

Functions

  • Regulation via 90° rotary actuator
  • Silent operation at differential pressure Δp < 50 kPa
  • Linear flow characteristic
  • Integrated pressure relief function
