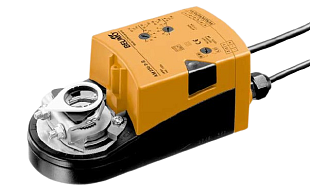

The actuator is designed for controlling air dampers in HVAC systems up to a size of approximately 3.6 m². It offers a simple installation solution with a universal clamp and high functional reliability thanks to overload protection. The AM230-2-S model is equipped with auxiliary switches with adjustable switching points.

Main Features

• Power supply: AC 230 V, 50/60 Hz
• Control: single-wire or two-wire control
• Torque: min. 18 Nm
• Rotation angle: max. 95°, mechanically adjustable

Technical Specifications

• Noise level: max. 45 dB
• Protection class: IP54
• Operating temperature: -30 °C to +50 °C
• Weight: 1.3 kg

The AM230-2 is suitable for applications requiring reliable open/close control with the option of manual operation via a self-resetting button. In the AM230-2-S model, the switching points of the auxiliary switches can be set for flexible position signalling.
