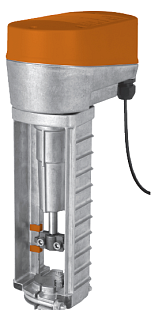

The linear actuator is designed for two- and three-way Belimo ball valves in HVAC systems. This actuator operates based on a 3-point signal and is suitable for applications with high demands on force and precision. With the option for manual position adjustment and high reliability, it is an ideal choice for industrial use.

Main Features

• Power Supply: AC 230 V
• Control Signal: 3-point
• Actuator Force: 2000 N
• Nominal Stroke: 40 mm
• Adjustable Running Time: 7.5 s/mm or 3.75 s/mm

Properties

• Mechanical Position Indication
• Short-circuit and Reverse Polarity Protection
• Manual Adjustment with Hex Key
• Protection Class IP54
• Noise Level max. 35 dB(A)

The AV230-3 provides robust and maintenance-free operation, with an emphasis on safety and easy installation. This actuator is ideal for extensive ventilation and air conditioning systems requiring precise flow control.
