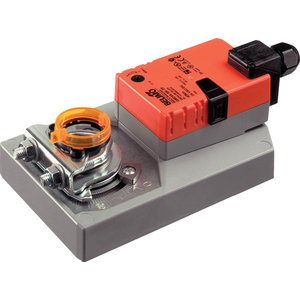

Belimo GM24A-SR-TP Actuator

Belimo GM24A-SR-TP Actuator

Product code: GM24A-SR-TP
Manufacturer code: GM24A-SR-TP
Warranty: 2 years

Belimo NM24A-SR-TP actuator. Designed for HVAC dampers with a maximum size of 2 m², ball valves. Power supply 24 VAC/DC. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 7,02

Bpost HD (Home Delivery):
2.7 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 1 pcs

Parameters and catalogs

Auxiliary contact	0...5 V
Control	0...10 V
Damper size	8 m²
Emergency function	0...25 mbar
Power Supply	24 VAC, 24 VAC
Setup time	150 s
Torque	40 Nm
Weight	1.60 kg

Data sheet eng download

Download PDF

Assembly instructions download

Download PDF

Assembly instructions download

Download PDF

Belimo NM24A-SR-TP Actuator. Designed for air dampers with a maximum size of 8 m², ball valves. Power supply 24 VAC/DC. Suitable for installation in air damper systems in HVAC and air conditioning equipment in buildings. Controlled by a DC 0-10V signal.

Simple direct mounting on the damper shaft with a universal bracket, anti-rotation secured with an included safety clip. Working position set using mechanical stops. Manual adjustment is possible with a self-return button (disengages the gear while the button is pressed or remains locked). High functional safety. The actuator is overload protected, does not require end switches, and automatically stops at the stop.
