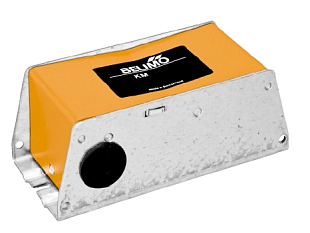

The actuator is designed for precise control of dampers in air handling systems. With a torque of 2 Nm and the ability to adjust the angle smoothly, it is suitable for applications where flexibility and precise control are required. The actuator uses an input signal of 0–10 V or 0–20 V for easy regulation. It provides maintenance-free operation and easy installation, ideal for applications requiring reliable and precise damper control.

Key Features

• Power Supply: AC 24 V ± 20%, 50/60 Hz
• Torque: 2 Nm at nominal voltage
• Input Signal: 0–10 V or 0–20 V
• Rotation Angle: Smoothly adjustable from 45° to 270°
• Safety Class: IP 40

Technical Specifications

• Running Time: 50–180 seconds depending on load
• Sound Power Level: max. 45 dB(A)
• Operating Temperature: 0 to +50 °C
• Mounting: Compatible with shafts with a diameter of 8–12 mm (requires K2 adapter)
