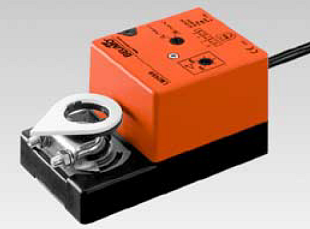

The actuator is designed for controlling air dampers in ventilation and air conditioning systems. It is operated via a modulating signal DC 0…10 V and provides damper position feedback to ensure precise adjustment.

Key Features

• Torque: min. 4 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable via potentiometer)
• Operating temperature: –30…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Manual control via automatic button
• Power supply: AC 24 V or DC 24 V
• Input signal: DC 0…10 V, feedback DC 2…10 V
• Maintenance-free operation and high reliability
• Synchronization between actuators with a tolerance of ±5%
