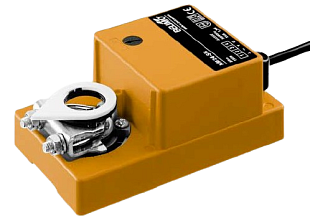

The actuator is designed for precise control of air dampers in ventilation and air conditioning systems up to a size of approximately 1.5 m². It supports modulating control using a DC 0…10 V signal with automatic adjustment of the rotation angle and running time.

Key Features

• Torque: min. 8 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable with mechanical stops)
• Operating temperature: –20…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Automatic calibration of angle and running time upon start-up
• Position feedback signal DC 2…10 V
• Manual control via button for function check
• Power supply: AC 24 V or DC 24 V, consumption 1.3 W during operation
• Possibility of parallel connection of multiple actuators
