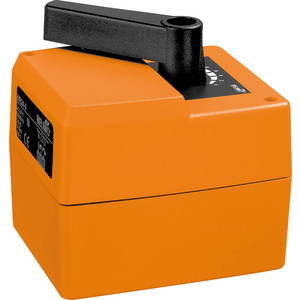

Rotary actuator designed for controlling ball valves in heating, ventilation, and air conditioning (HVAC) systems. It is designed for applications requiring reliable and precise flow control of the medium.

Technical Specifications

• Torque: 10 Nm

• Supply voltage: AC/DC 24 V
• Control signal: Open/close, 3-point
• Adjustment time: 90 s / 90°
• Protection rating: IP54
• Manual control: Button, lockable option
• Weight: 0.72 kg

Key Features

• Easy installation: Direct mounting on the ball valve using a central screw.
• Adjustable operating angle: Mechanical stops allow for angle adjustment.
• High functional reliability: The actuator is protected against overload and automatically stops at the end stops.
• Maintenance-free operation: Designed for long-term operation without the need for maintenance.
