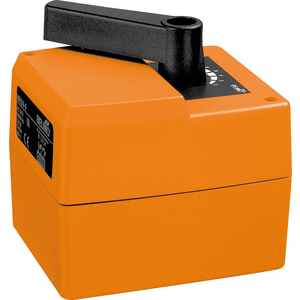

Modulating rotary actuator designed for controlling ball valves in heating, ventilation, and air conditioning (HVAC) systems. It is designed for applications requiring precise and reliable flow control.

Technical Specifications

• Torque: 10 Nm
• Power Supply: AC/DC 24 V
• Control Signal: Continuous 2...10 V
• Position Feedback: 2...10 V
• Adjustment Time: 90 s / 90°
• Protection Rating: IP54
• Manual Control: Button, lockable
• Weight: 0.75 kg

Key Features

• Easy Installation: Direct mounting on the ball valve using a central screw.
• Adjustable Operating Angle: Mechanical stops allow for angle adjustment.
• High Functional Reliability: The actuator is protected against overload and automatically stops at end stops.
• Maintenance-Free Operation: Designed for long-term operation without the need for maintenance.

This actuator is ideal for applications where precise flow control through ball valves is required. It is compatible with Belimo ball valves and ensures efficient and reliable operation in various HVAC systems.
