The actuator is designed for controlling air dampers up to a size of 3 m². It offers safe operation without end switches and automatically stops upon reaching the limit. Easy installation and simple function testing make this model an ideal choice for HVAC systems.

Main Features

• Power Supply: AC/DC 24 V
• Torque: 15 Nm
• Rotation Angle: 95° (mechanically limited)
• Running Time: 90–150 s (0–15 Nm)

Specifications

• Noise Level: max. 45 dB
• Protection Class: IP54
• Operating Temperature: -30 °C to +50 °C
• Weight: 1.4 kg

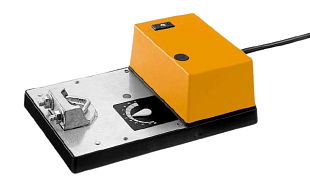

The SM24 is equipped with a universal clamp for easy attachment to the damper shaft and a button for manual control during testing. It is designed for low-voltage power supply and is easy to connect.
