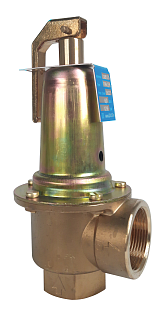

Boiler Safety Valve DUCO 1 1/2" × 2" 10 bar (694050.100B)

Boiler Safety Valve DUCO 1 1/2" × 2" 10 bar (694050.100B)
  • 5 variants

Boiler Safety Valve DUCO 1 1/2" × 2" 10 bar (694050.100B)

DUCO
  • Product code: 694050.100B
  • Manufacturer code: 694050.100B
  • Warranty: 2 years

Safety valve DUCO in size 1 1/2" x 2" with an opening pressure of 10 bar. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 514,07
Price excluding VAT € 382,36
Price with VAT 21 % € 462,66

Product variants

− +

Trustpilot

Parameters and catalogs

Connection size DN 40
Material Brass
Pressure 10 bar
Temperature 120 °C
Weight 2.22 kg

Leaflet download

Download PDF

The safety valve is designed for DHW systems. The valve features a cap that protects it from unwanted adjustments and tampering. The valve body is made of brass, and both the seal and the diaphragm are made of EPDM.

Construction

  1. lever
  2. adjustment screw
  3. indicator label
  4. valve stem
  5. preset spring
  6. spring cap
  7. stroke limiter
  8. diaphragm
  9. valve cone
  10. valve body
  11. valve seat
