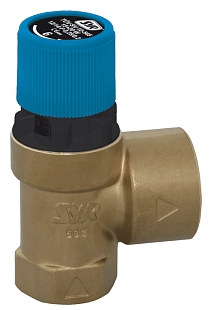

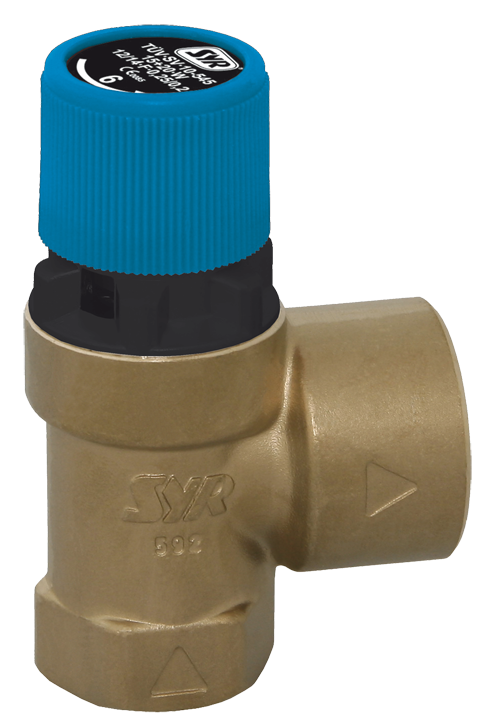

Boiler Safety Valve SYR 2115 DN 32 6 bar (2115.32.000)

  • 2 variants

Boiler Safety Valve SYR 2115 DN 32 6 bar (2115.32.000)

SYR
  • Product code: 2115.32.000
  • EAN : 4017905006873
  • Manufacturer code: 2115.32.000
  • Warranty: 2 years

Safety diaphragm valve for boilers SYR 2115. DN 32, 6 bar. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 173,65
Price excluding VAT € 123,42
Price with VAT 21 % € 149,34

Product variants

+

Parameters and catalogs

Connection size DN 32
Material Brass
Pressure 6 bar
Temperature 110 °C
Weight 0.80 kg

Catalog sheet download

Download PDF

The safety valve protects boilers and closed water heaters against overpressure in the water supply system. The valve ensures that the pressure in the heater does not exceed and prevents accidents. The selection of the correct valve should be based on the input pressure in the system, which should be 20% less than the valve's maximum operating pressure. The valve is installed before the heater in the pipe leading cold water into the heater.

The valve has a pre-seated seal that is separated from the diaphragm. Ventilation can be performed by turning the handle on the valve. The valve is made from a high-quality brass alloy with only a low lead content. The vent cap is made of plastic reinforced with glass fibres. The sealing elements and diaphragm are made from heat-resistant elastic synthetic material.
