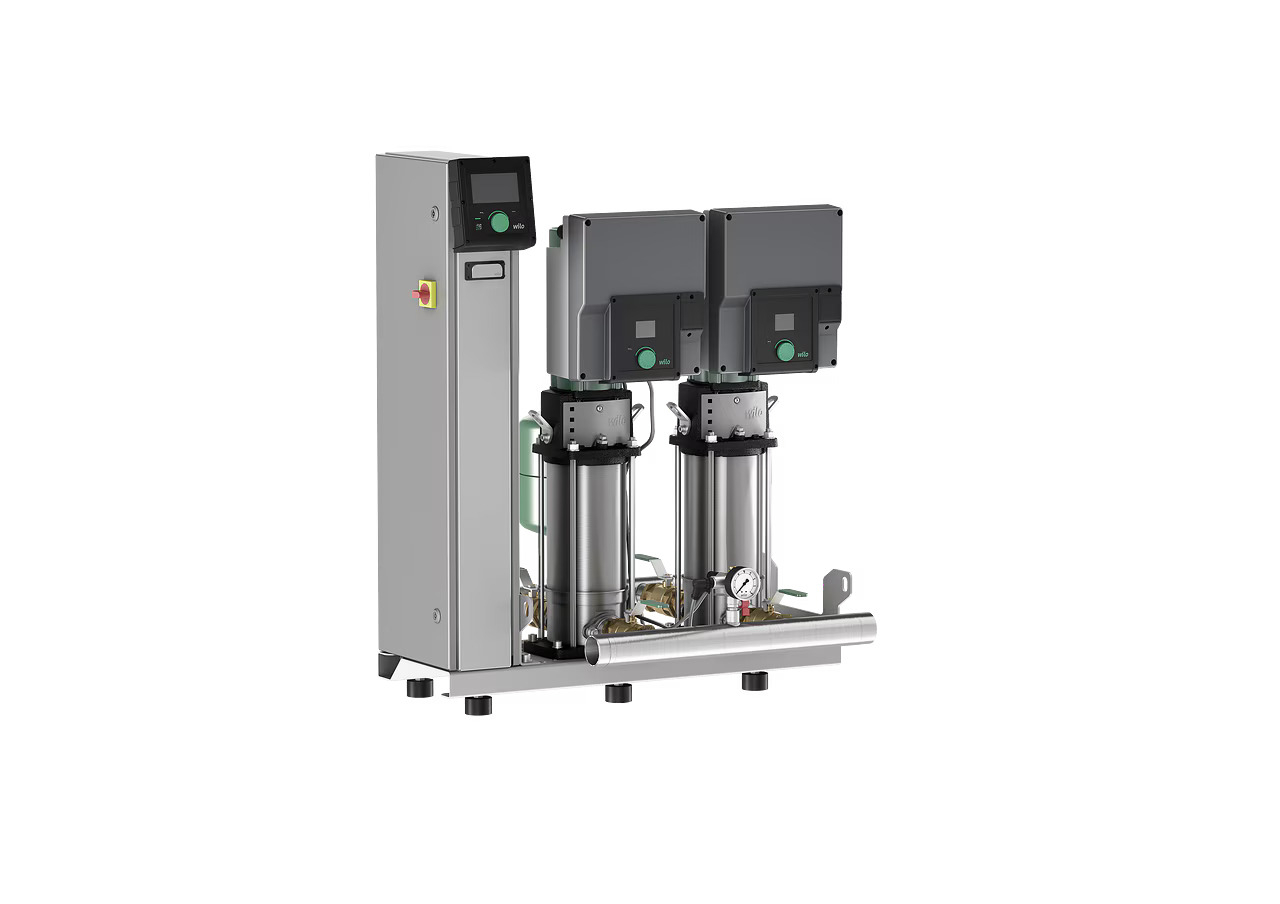

Booster Station Wilo SiBoost2.0 Smart-2HELIX VE608 (4257956)

Booster Station Wilo SiBoost2.0 Smart-2HELIX VE608 (4257956)

WILO
  • Product code: 4257956
  • EAN : 4062679276069
  • Manufacturer code: 4257956
  • Warranty: 2 years

Automatic device for increasing water pressure with a stainless steel pump, intelligent control, and energy-efficient operation. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx Freight:
    2.3 workdays € 61,71
  • In external stock 1 pcs

List price € 15 155,25
Price excluding VAT € 10 020,00
Price with VAT 21 % € 12 124,20
+

Parameters and catalogs

Frequency converter Yes
IP Rating IP 55
Operating pressure PN 16
Power Supply 400 VAC
Pressure 16 bar
Pressure vessel Yes
Pump flow rate 12.5 m3/h
Pump head 103 m
Volume of the pressure vessel 8 l
Weight 184.00 kg

Catalog sheet download

Download PDF

The Wilo SiBoost2.0 Smart 2HELIX VE608 is a compact and reliable device for automatic water pressure boosting. It is ideal for installation in residential buildings, office complexes, healthcare facilities, and smaller industrial operations. With fully electronic control, it provides maximum comfort and safe operation.

The device is equipped with two vertical high-pressure pumps made of stainless steel, each with its own frequency converter. The SCe2.0 controller with a colour display allows for easy setting and optimisation of operating parameters. Thanks to intelligent control, high efficiency, and compact dimensions, the device is suitable even for more demanding applications.

Main Features

  • Fully automatic water pressure boosting
  • Two high-pressure stainless steel pumps with frequency converter
  • Intelligent control via SCe2.0 with graphical display
  • Optimised hydraulics with low pressure loss
  • Integrated dry-running protection
  • Extensive connectivity options to BMS (Modbus, BACnet)
  • Suitable for potable, cooling, and service water
  • Compact dimensions and easy maintenance

Technical Specifications

Max. operating pressure 16 bar
Flow rate (Q) 6 m³/h
Number of pumps 2
Rated motor power 3 kW
Motor protection class IP55
Inlet pipe connection R 2
Outlet pipe connection R 2
Medium temperature 3...50 °C
Pump casing material Stainless steel
Impeller material Stainless steel
